MAX4594ELT+T

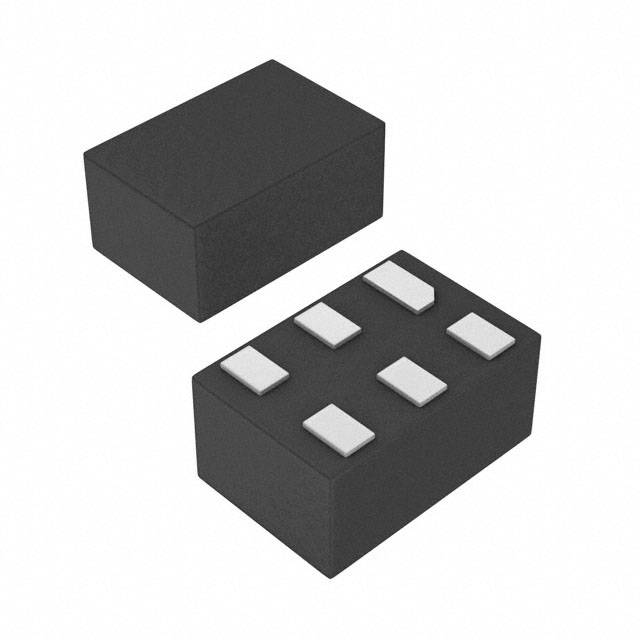

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MAX4594ELT+T with confidence from Components-World.HK, 1 Year Warranty
Dowload MAX4594ELT+T Details in PDFSee Product Specifications for product details.
Buy MAX4594ELT+T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MAX4594ELT+T |
|---|---|
| Manufacturer | Maxim Integrated |
| Description | IC SWITCH SPST 6UDFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.584 | $0.553 | $0.442 | $0.42 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.387 | $0.367 | $0.281 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | MAX4594ELT+T | Manufacturer | Maxim Integrated |
|---|---|---|---|
| Description | IC SWITCH SPST 6UDFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 83671 pcs | Data sheet | Part Numbering SystemMAX4594-4597 |
| Category | Integrated Circuits (ICs) | Voltage - Supply, Single (V+) | 2 V ~ 5.5 V |
| Voltage - Supply, Dual (V±) | - | Switch Time (Ton, Toff) (Max) | 35ns, 40ns |
| Switch Circuit | SPST - NO | Supplier Device Package | 6-uDFN (1.5x1.0) |
| Series | - | Packaging | Strip |
| Package / Case | 6-WFDFN | Other Names | MAX4594ELT+ MAX4594ELT+TTR MAX4594ELT+TTR-ND |
| Operating Temperature | -40°C ~ 85°C (TA) | On-State Resistance (Max) | 10 Ohm |
| Number of Circuits | 1 | Multiplexer/Demultiplexer Circuit | 1:1 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | 1 Circuit IC Switch 1:1 10 Ohm 6-uDFN (1.5x1.0) | Current - Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | - | Charge Injection | 2pC |
| Channel-to-Channel Matching (ΔRon) | - | Channel Capacitance (CS(off), CD(off)) | 8pF, 8pF |
| Base Part Number | MAX4594 | -3db Bandwidth | 300MHz |
