Home > Products > RF/IF and RFID > RF Amplifiers > MAX2686LEWS+T

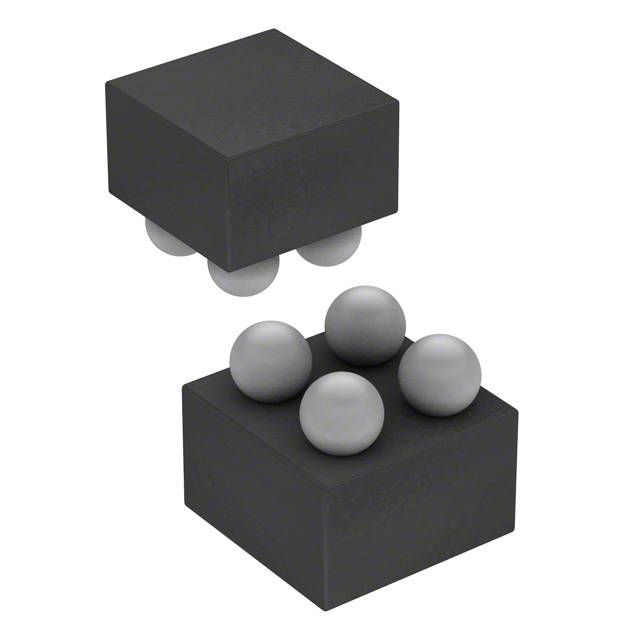

MAX2686LEWS+T

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MAX2686LEWS+T with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MAX2686LEWS+T
Manufacturer	Maxim Integrated
Description	IC RF AMP GPS 1575.42MHZ 4WLP
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 76559 pcs
Reference Price (In US Dollars)	2500 pcs
Reference Price (In US Dollars)	$0.263

Product parameter
Data sheet

Product parameter

Part Number	MAX2686LEWS+T	Manufacturer	Maxim Integrated
Description	IC RF AMP GPS 1575.42MHZ 4WLP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	76559 pcs	Data sheet	MAX2686L, 93L
Category	RF/IF and RFID	Voltage - Supply	1.6 V ~ 3.3 V
Test Frequency	1575.42MHz	Supplier Device Package	4-WLP (0.84x0.84)
Series	-	RF Type	GPS/GNSS
Packaging	Tape & Reel (TR)	Package / Case	4-WFBGA, WLBGA
P1dB	-10dBm	Noise Figure	0.75dB
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	6 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Gain	19dB
Frequency	1575.42MHz	Detailed Description	RF Amplifier IC GPS/GNSS 1575.42MHz 4-WLP (0.84x0.84)
Current - Supply	4.1mA
