Home > Products > Development Boards, Kits, Programmers > Evaluation and Demonstration Boards and Kits > MAX22501EEVKIT#

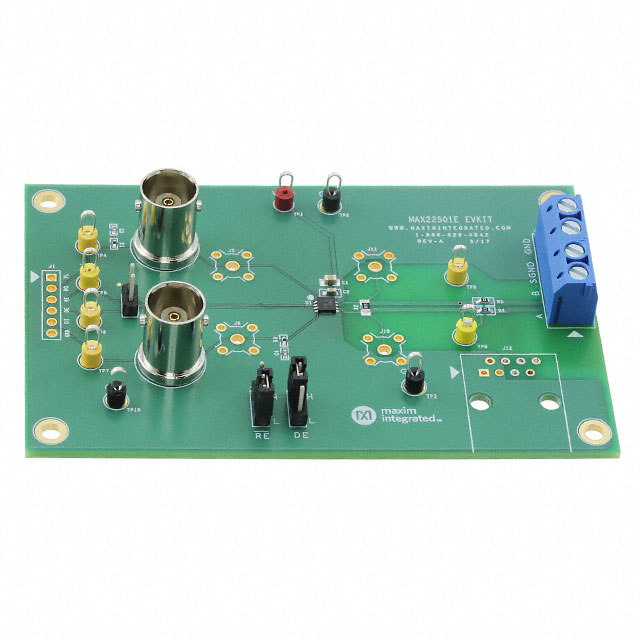

MAX22501EEVKIT#

MAX22501EEVKIT#

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MAX22501EEVKIT# with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MAX22501EEVKIT#
Manufacturer	Maxim Integrated
Description	EVAL MAX22501 RS485/RS422
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 793 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$43.411

Product parameter
Data sheet

Product parameter

Part Number	MAX22501EEVKIT#	Manufacturer	Maxim Integrated
Description	EVAL MAX22501 RS485/RS422	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	793 pcs	Data sheet	MAX22500E,01E Datasheet MAX22501E Evaluation Kit
Category	Development Boards, Kits, Programmers	Utilized IC / Part	MAX22501E
Type	Interface	Supplied Contents	Board(s)
Series	-	Secondary Attributes	Half-Duplex
Primary Attributes	-	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	6 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Function	Transceiver, RS-422, RS-485	Embedded	No
Detailed Description	MAX22501E Transceiver, RS-422, RS-485 Interface Evaluation Board
