Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > MAX20003EVKIT#

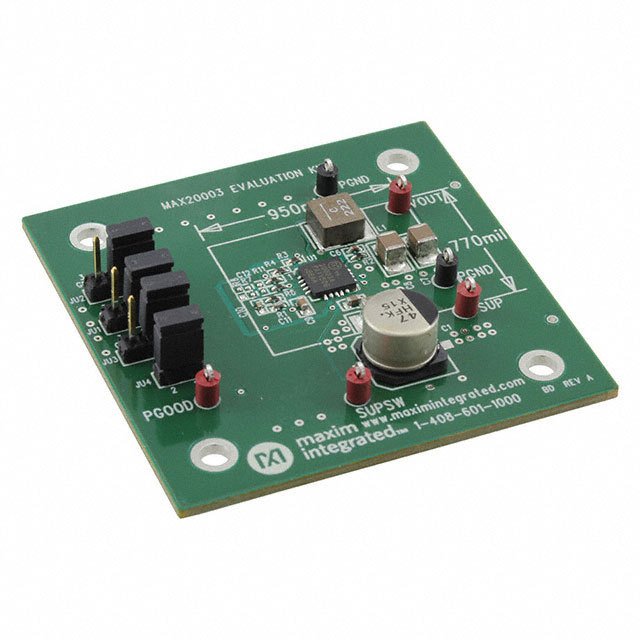

MAX20003EVKIT#

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MAX20003EVKIT# with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MAX20003EVKIT#
Manufacturer	Maxim Integrated
Description	EVAL BOARD FOR MAX20002/MAX20003
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1645 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$20.746

Product parameter
Data sheet

Product parameter

Part Number	MAX20003EVKIT#	Manufacturer	Maxim Integrated
Description	EVAL BOARD FOR MAX20002/MAX20003	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1645 pcs	Data sheet	MAX20003EVKIT MAX20002,03 Series
Category	Development Boards, Kits, Programmers	Voltage - Output	5V
Voltage - Input	3.5 V ~ 36 V	Utilized IC / Part	MAX20002, MAX20003
Supplied Contents	Board(s)	Series	-
Regulator Topology	Buck	Outputs and Type	1, Non-Isolated
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	6 Weeks
Main Purpose	DC/DC, Step Down	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Switching	-	Detailed Description	MAX20002, MAX20003 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Current - Output	3A	Board Type	Fully Populated
