Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > MAX1889EVKIT

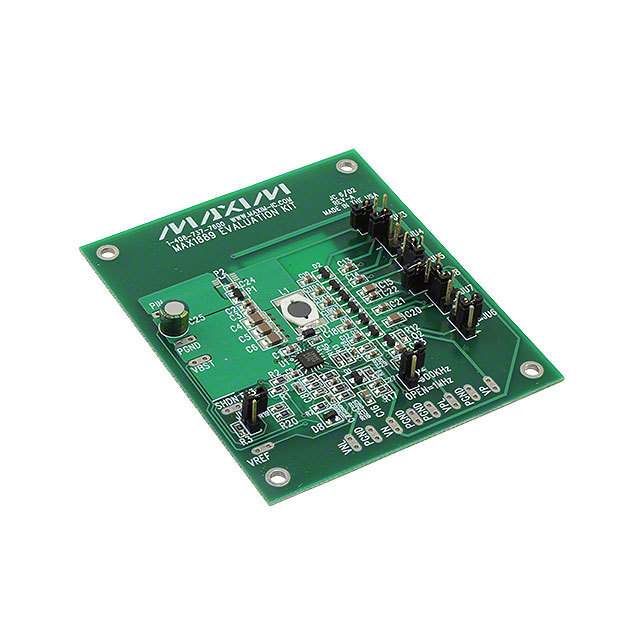

MAX1889EVKIT

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MAX1889EVKIT with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MAX1889EVKIT
Manufacturer	Maxim Integrated
Description	KIT EVAL MAX1889
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 854 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
Reference Price (In US Dollars)	$58.614	$55.296	$44.237	$42.025

Product parameter
Data sheet

Product parameter

Part Number	MAX1889EVKIT	Manufacturer	Maxim Integrated
Description	KIT EVAL MAX1889	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	854 pcs	Data sheet	MAX1889 MAX1889 Eval Kit
Category	Development Boards, Kits, Programmers	Voltage - Output	9V, 20V, -7V
Voltage - Input	2.7 V ~ 5.5 V	Utilized IC / Part	MAX1889
Supplied Contents	Board(s)	Series	-
Regulator Topology	Boost	Outputs and Type	3, Non-Isolated
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Main Purpose	Special Purpose DC/DC, LCD Supply
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Frequency - Switching	1MHz
Detailed Description	MAX1889 - Special Purpose DC/DC, LCD Supply 3, Non-Isolated Outputs Evaluation Board	Current - Output	200mA, 10mA, 10mA
Board Type	Fully Populated
