Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > MAX16974EVKIT+

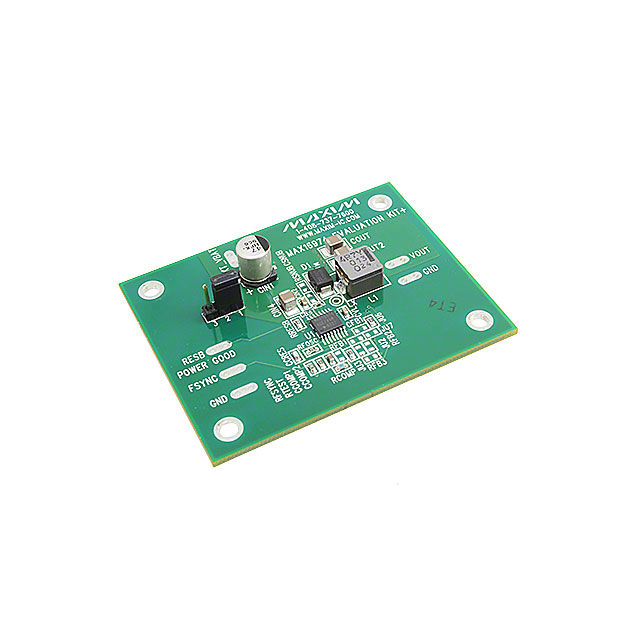

MAX16974EVKIT+

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MAX16974EVKIT+ with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MAX16974EVKIT+
Manufacturer	Maxim Integrated
Description	KIT EVALUATION FOR MAX16974
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1799 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$18.318

Product parameter
Data sheet

Product parameter

Part Number	MAX16974EVKIT+	Manufacturer	Maxim Integrated
Description	KIT EVALUATION FOR MAX16974	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1799 pcs	Data sheet	MAX16974 Eval Kit MAX16974 EE-Sim Design, Simulation Environment Guide
Category	Development Boards, Kits, Programmers	Voltage - Output	5V, 1 V ~ 10 V
Voltage - Input	3.5 V ~ 28 V	Utilized IC / Part	MAX16974
Supplied Contents	Board(s)	Series	-
Regulator Topology	Buck	Outputs and Type	1, Non-Isolated
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	6 Weeks
Main Purpose	DC/DC, Step Down	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Switching	220kHz ~ 2.2MHz	Detailed Description	MAX16974 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Current - Output	2A	Board Type	Fully Populated
