Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > MAX15046BEVKIT+

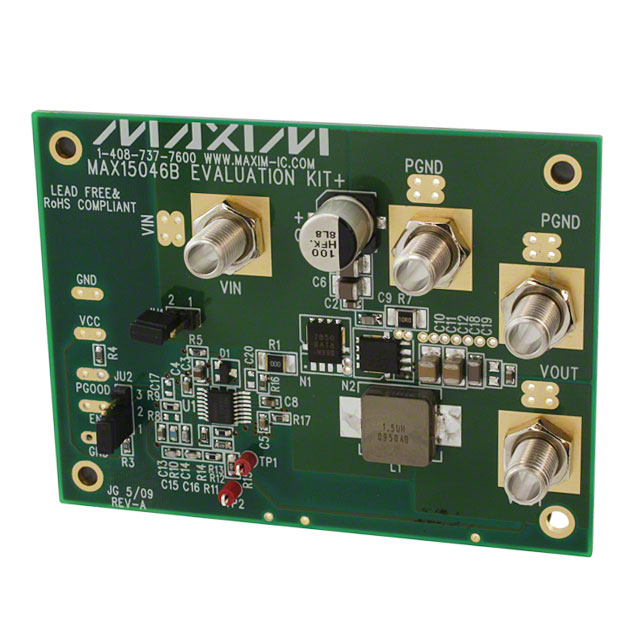

MAX15046BEVKIT+

MAX15046BEVKIT+

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MAX15046BEVKIT+ with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MAX15046BEVKIT+
Manufacturer	Maxim Integrated
Description	BOARD EVAL FOR MAX15046B
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1397 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$25.117

Product parameter
Data sheet

Product parameter

Part Number	MAX15046BEVKIT+	Manufacturer	Maxim Integrated
Description	BOARD EVAL FOR MAX15046B	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1397 pcs	Data sheet	MAX15046 MAX15046B Eval Kit EE-Sim Design, Simulation Environment Guide
Category	Development Boards, Kits, Programmers	Voltage - Output	3.3V
Voltage - Input	5 V ~ 40 V	Utilized IC / Part	MAX15046B
Supplied Contents	Board(s)	Series	-
Regulator Topology	Buck	Outputs and Type	1, Non-Isolated
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	6 Weeks
Main Purpose	DC/DC, Step Down	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Switching	350kHz	Detailed Description	MAX15046B - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Current - Output	10A	Board Type	Fully Populated
