Home > Products > Sensors, Transducers > Temperature Sensors - Analog and Digital Output > DS1821

DS1821

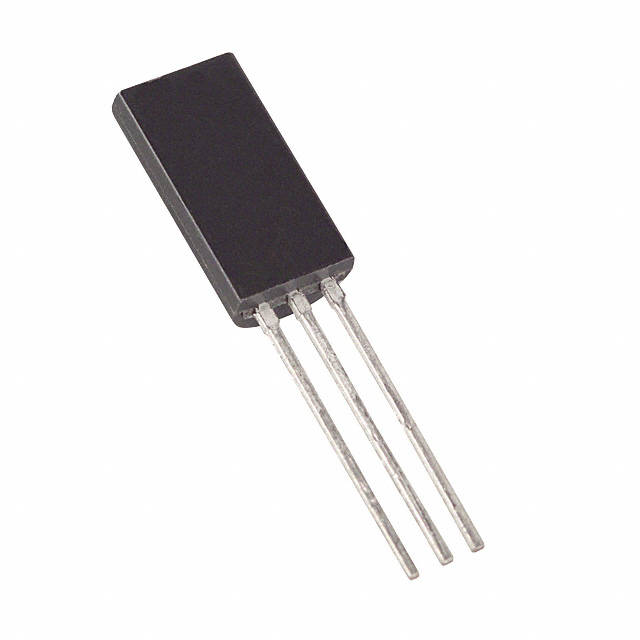

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DS1821 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	DS1821
Manufacturer	Maxim Integrated
Description	SENSOR DIGITAL -55C-125C TO92-3
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant

~~In Stock~~ 29780 pcs
Reference Price (In US Dollars)	4000 pcs
Reference Price (In US Dollars)	$1.008

Product parameter
Data sheet

Product parameter

Part Number	DS1821	Manufacturer	Maxim Integrated
Description	SENSOR DIGITAL -55C-125C TO92-3	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	29780 pcs	Data sheet	DS1821
Category	Sensors, Transducers	Voltage - Supply	2.7 V ~ 5.5 V
Test Condition	0°C ~ 85°C	Supplier Device Package	TO-92-3
Series	-	Sensor Type	Digital, Local
Sensing Temperature - Remote	-	Sensing Temperature - Local	-55°C ~ 125°C
Resolution	7 b	Packaging	Tray
Package / Case	TO-226-3, TO-92-3 Long Body	Output Type	1-Wire®
Operating Temperature	-55°C ~ 125°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Features	One-Shot, Output Switch, Programmable Limit, Standby Mode	Detailed Description	Temperature Sensor Digital, Local -55°C ~ 125°C 7 b TO-92-3
Accuracy - Highest (Lowest)	±1°C
