Home > Products > Integrated Circuits (ICs) > PMIC - Energy Metering > 78M6613-IMR/F/PSP

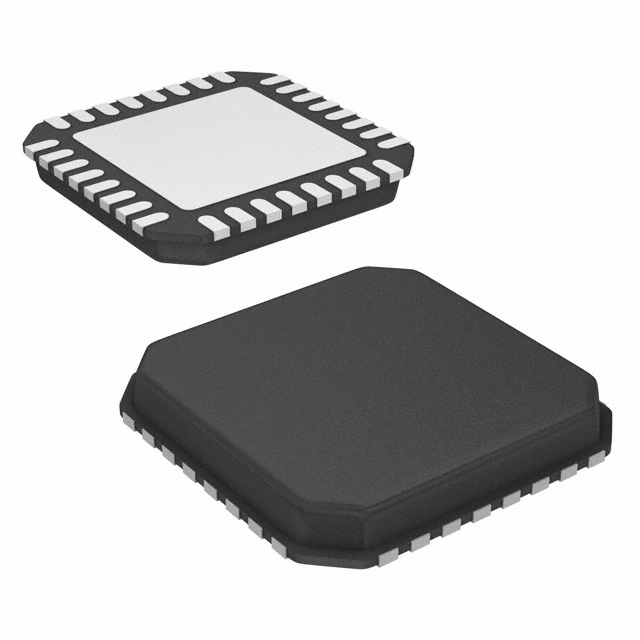

78M6613-IMR/F/PSP

78M6613-IMR/F/PSP

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 78M6613-IMR/F/PSP with confidence from Components-World.HK, 1 Year Warranty

Dowload 78M6613-IMR/F/PSP Details in PDF

Request a Quote

Part Number	78M6613-IMR/F/PSP
Manufacturer	Maxim Integrated
Description	IC PWR MEASUREMENT 1PH AC 32SQFN
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant

~~In Stock~~ 6016 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	78M6613-IMR/F/PSP	Manufacturer	Maxim Integrated
Description	IC PWR MEASUREMENT 1PH AC 32SQFN	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	6016 pcs	Data sheet	78M6613HPL Firmware Quick Start Guide 78M6613 78M6613 PSU Firmware Quick Start Guide
Category	Integrated Circuits (ICs)	Voltage - Supply	3V ~ 3.6V
Voltage - I/O Low	0.8V	Voltage - I/O High	2V
Supplier Device Package	32-SQFN (5x5)	Series	Teridian™
Packaging	Tape & Reel (TR)	Package / Case	32-VFQFN Exposed Pad
Operating Temperature	-40°C ~ 85°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Meter Type	Single Phase
Measurement Error	0.5%	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Input Impedance	40 kOhm ~ 90 kOhm	Detailed Description	Single Phase Meter IC 32-SQFN (5x5)
Current - Supply	9.1mA	Base Part Number	78M6613
