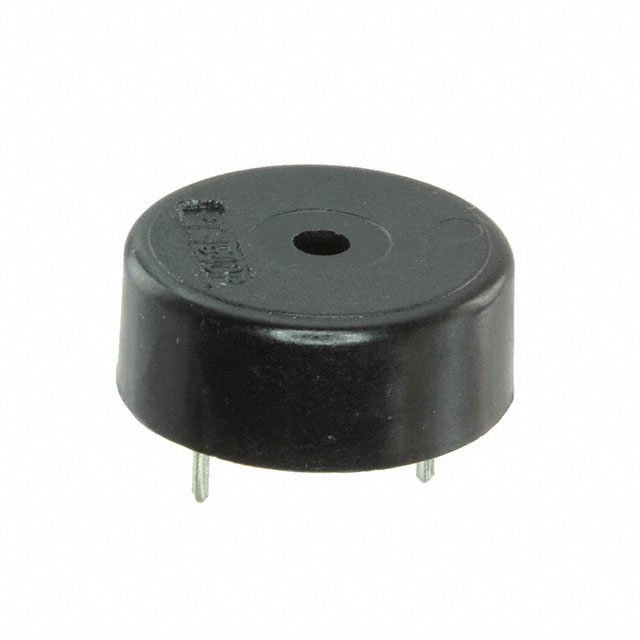

PT-1540PM-P3.5Q
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PT-1540PM-P3.5Q with confidence from Components-World.HK, 1 Year Warranty
Dowload PT-1540PM-P3.5Q Details in PDFSee Product Specifications for product details.
Buy PT-1540PM-P3.5Q with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PT-1540PM-P3.5Q |
|---|---|
| Manufacturer | Mallory Sonalert Products |
| Description | AUDIO PIEZO TRANSDUCER 1-25V TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.585 | $0.463 | $0.422 | $0.394 | $0.367 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.335 | $0.312 | $0.292 | $0.285 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PT-1540PM-P3.5Q | Manufacturer | Mallory Sonalert Products |
|---|---|---|---|
| Description | AUDIO PIEZO TRANSDUCER 1-25V TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 77666 pcs | Data sheet | PT/AST External Drive Appl GuidePT-1540PM-P3.5Q Datasheet |
| Category | Audio Products | Voltage Range | 1 ~ 25V |
| Voltage - Rated | 5V | Termination | PC Pins |
| Technology | Piezo | Sound Pressure Level (SPL) | 85dB @ 5V, 10cm |
| Size / Dimension | 0.669" Dia (17.00mm) | Series | PT |
| Ratings | - | Port Location | Top |
| Packaging | Bulk | Other Names | 458-1393 |
| Operating Temperature | -20°C ~ 100°C | Operating Mode | Single Tone |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 15 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | Peak-Peak Signal | Height - Seated (Max) | 0.370" (9.40mm) |
| Frequency | 4kHz | Duration | - |
| Driver Circuitry | Transducer, Externally Driven | Detailed Description | Buzzers Transducer, Externally Driven Piezo 5V 1.5mA 4kHz 85dB @ 5V, 10cm Through Hole PC Pins |
| Current - Supply | 1.5mA | Approvals | - |
