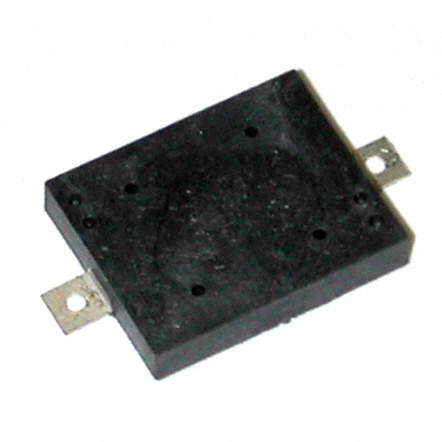

AST1109MLTRQ
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AST1109MLTRQ with confidence from Components-World.HK, 1 Year Warranty
Dowload AST1109MLTRQ Details in PDFSee Product Specifications for product details.
Buy AST1109MLTRQ with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AST1109MLTRQ |
|---|---|
| Manufacturer | Mallory Sonalert Products |
| Description | AUDIO PIEZO TRANSDUCER 1-20V SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.971 | $0.769 | $0.702 | $0.656 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.609 | $0.559 | $0.525 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | AST1109MLTRQ | Manufacturer | Mallory Sonalert Products |
|---|---|---|---|
| Description | AUDIO PIEZO TRANSDUCER 1-20V SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 63526 pcs | Data sheet | AST1109MLTRQ |
| Category | Audio Products | Voltage Range | 1 ~ 20V |
| Voltage - Rated | 5V | Termination | Solder Pads |
| Technology | Piezo | Sound Pressure Level (SPL) | 73dB @ 5V, 10cm |
| Size / Dimension | 0.433" L x 0.354" W (11.00mm x 9.00mm) | Series | AST |
| Ratings | - | Port Location | Top |
| Packaging | Cut Tape (CT) | Other Names | 458-1093-1 |
| Operating Temperature | -20°C ~ 70°C | Operating Mode | Single Tone |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 22 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | Peak-Peak Signal | Height - Seated (Max) | 0.079" (2.00mm) |
| Frequency | 4.1kHz | Duration | - |
| Driver Circuitry | Transducer, Externally Driven | Detailed Description | Buzzers Transducer, Externally Driven Piezo 5V 1mA 4.1kHz 73dB @ 5V, 10cm Surface Mount Solder Pads |
| Current - Supply | 1mA | Approvals | - |
