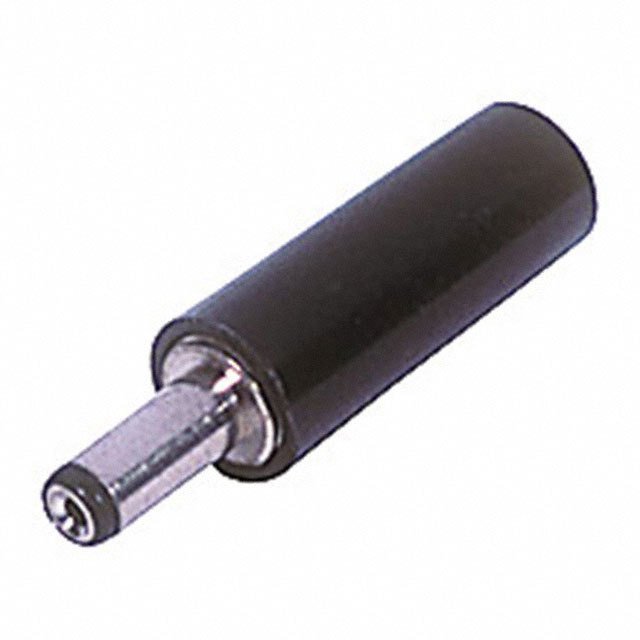

EP505A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EP505A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EP505A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EP505A |
|---|---|
| Manufacturer | MPD (Memory Protection Devices) |
| Description | CONN PWR PLUG 1.05X3.5MM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $0.431 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | EP505A | Manufacturer | MPD (Memory Protection Devices) |
|---|---|---|---|
| Description | CONN PWR PLUG 1.05X3.5MM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 87605 pcs | Data sheet | EP505A Drawing |
| Category | Connectors, Interconnects | Voltage - Rated | 12VDC |
| Thread Size | - | Termination | Solder |
| Shielding | Unshielded | Series | - |
| Packaging | Bulk | Operating Temperature | - |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts | Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Length/Depth | 0.378" (9.60mm) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Does Not Contain Switch | Insulation Color | Black |
| Ingress Protection | - | Industry Recognized Mating Diameter | 1.05mm ID (0.041"), 3.50mm OD (0.138") |
| Includes | 2 pcs - 1 Connector, 1 Handle | Housing Material | Polypropylene (PP) |
| Gender | Female | Features | Strain Relief |
| Detailed Description | Power Barrel Connector Plug 1.05mm ID (0.041"), 3.50mm OD (0.138") Free Hanging (In-Line) | Current Rating | 5A |
| Contact Material - Plating | Nickel | Contact Material | Brass |
| Connector Type | Plug | Body Material | Brass |
| Body Color | Silver, Black | Actual Diameter | 0.039" (1.00mm ID), 0.150" (3.80mm OD) |
