Home > Products > Circuit Protection > Fuseholders > BF309

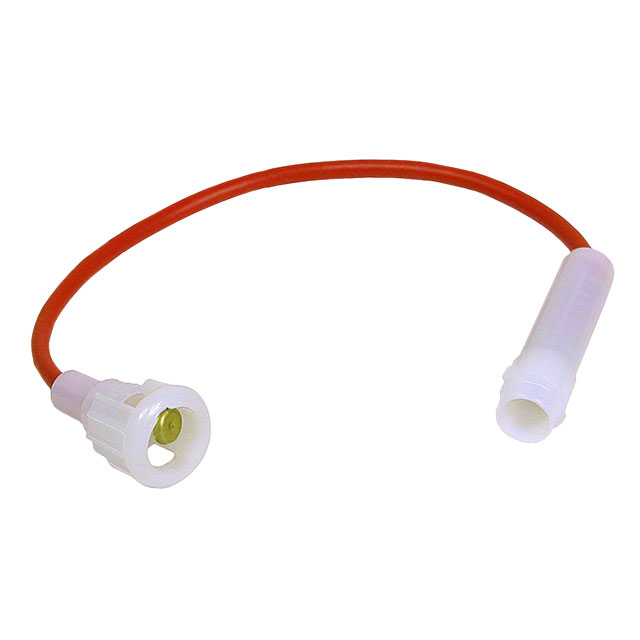

BF309

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BF309 with confidence from Components-World.HK, 1 Year Warranty

Dowload BF309 Details in PDF

Request a Quote

Part Number	BF309
Manufacturer	MPD (Memory Protection Devices)
Description	INLINE FUSE HOLDER 30A/14AWG
Lead Free Status / RoHS Status

~~In Stock~~ 83867 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs	500 pcs	1000 pcs
Reference Price (In US Dollars)	$0.848	$0.767	$0.524	$0.43	$0.383

Product parameter
Data sheet

Product parameter

Part Number	BF309	Manufacturer	MPD (Memory Protection Devices)
Description	INLINE FUSE HOLDER 30A/14AWG	Lead Free Status / RoHS Status
Quantity Available	83867 pcs	Data sheet	Fuse Clips, Blocks, Holders Catalog BF309 Drawing
Category	Circuit Protection	Voltage	600V
Termination Style	Wire Leads	Series	-
Orientation	-	Number of Circuits	1
Mounting Type	Free Hanging In Line	Moisture Sensitivity Level (MSL)	Not Applicable
Manufacturer Standard Lead Time	14 Weeks	Fuseholder Type	Holder
Fuse Type	Cartridge	Fuse Size	1/4" Dia x 1 1/4" L (6.4mm x 31.8mm)
For Use With/Related Products	AGC, JMC	Detailed Description	Fuse Holder 30A 600V 1 Circuit Cartridge Free Hanging In Line
Current Rating	30A	Contact Material	-
Contact Finish	-
