ASP0460622

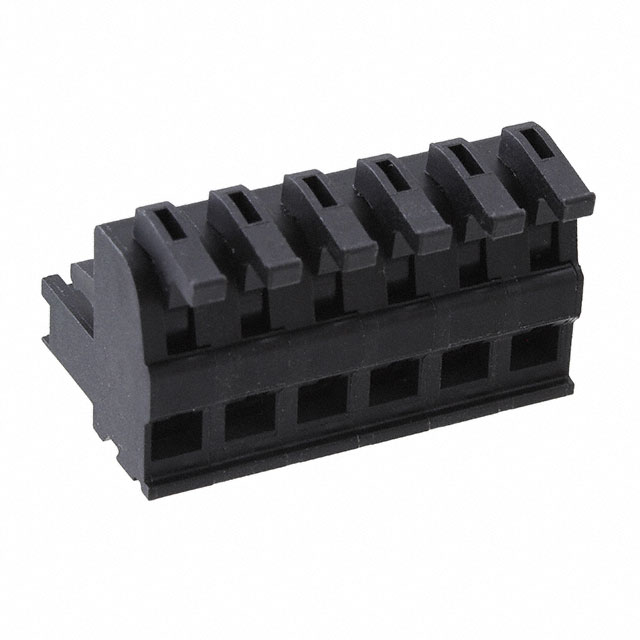

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ASP0460622 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ASP0460622 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ASP0460622 |
|---|---|
| Manufacturer | METZ CONNECT |
| Description | SPRING CLAMP TERMINAL BLOCK, PLU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.545 | $1.176 | $1.102 | $0.979 | $0.958 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.883 | $0.798 | $0.708 | $0.665 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ASP0460622 | Manufacturer | METZ CONNECT |
|---|---|---|---|
| Description | SPRING CLAMP TERMINAL BLOCK, PLU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 52813 pcs | Data sheet | ASP046xx Datasheet |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | 0.08-1mm² | Wire Gauge or Range - AWG | 16-28 AWG |
| Voltage - UL | 300V | Type | Plug, Female Sockets |
| Torque - Screw | - | Termination Style | Screwless - Spring Cage, Tension Clamp |
| Series | - | Screw Size | - |
| Positions Per Level | 6 | Plug Wire Entry | 180° |
| Pitch | 0.200" (5.08mm) | Packaging | Bulk |
| Other Names | 1849-1074 | Operating Temperature | -40°C ~ 105°C |
| Number of Positions | 6 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.610" (15.49mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA46), Nylon 4/6 | Header Orientation | - |
| Features | Lever Actuated, Retention Latches (Non-Wire Side) | Detailed Description | 6 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line) |
| Current - UL | 10A | Current - IEC | - |
| Contact Tail Length | - | Contact Mating Finish | - |
| Contact Material | - | Color | Black |
