31330103

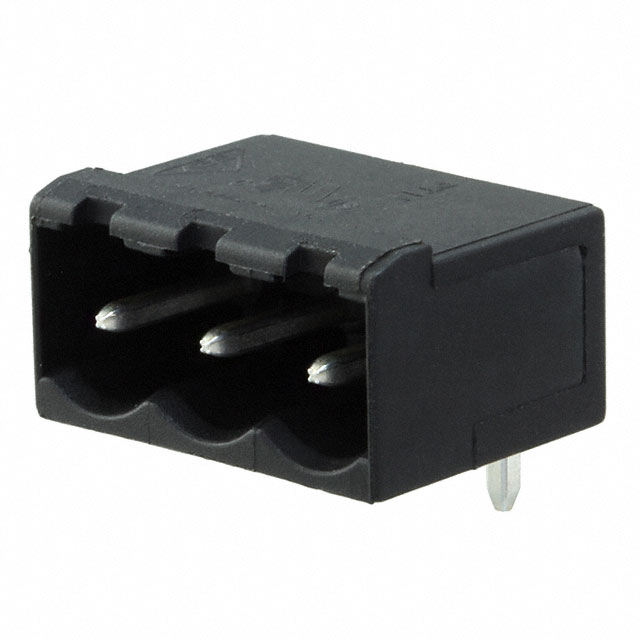

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 31330103 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 31330103 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 31330103 |
|---|---|
| Manufacturer | METZ CONNECT |
| Description | SHROUDED HEADER, RIGHT ANGLE, PC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.264 | $0.248 | $0.19 | $0.165 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.136 | $0.12 | $0.111 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 31330103 | Manufacturer | METZ CONNECT |
|---|---|---|---|
| Description | SHROUDED HEADER, RIGHT ANGLE, PC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 199751 pcs | Data sheet | 313301xx Datasheet |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 300V | Type | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw | - | Termination Style | Solder |
| Series | - | Screw Size | - |
| Positions Per Level | 3 | Plug Wire Entry | - |
| Pitch | 0.197" (5.00mm) | Packaging | Bulk |
| Other Names | 1849-1134 | Operating Temperature | -40°C ~ 105°C |
| Number of Positions | 3 | Number of Levels | 1 |
| Mounting Type | Through Hole | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.331" (8.40mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA66), Nylon 6/6 | Header Orientation | 90°, Right Angle |
| Features | - | Detailed Description | 3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) 90°, Right Angle Through Hole |
| Current - UL | 15A | Current - IEC | - |
| Contact Tail Length | 0.136" (3.45mm) | Contact Mating Finish | Silver |
| Contact Material | Copper Alloy | Color | Black |
