31190103

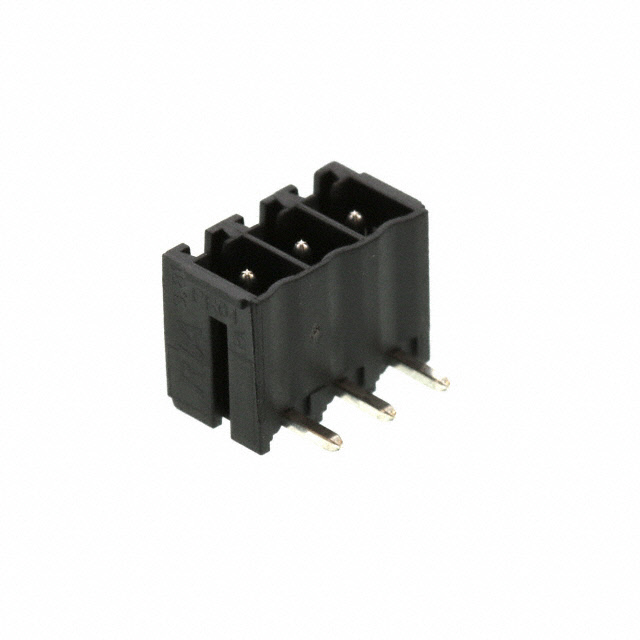

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 31190103 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 31190103 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 31190103 |
|---|---|
| Manufacturer | METZ CONNECT |
| Description | SHROUDED HEADER, RIGHT ANGLE, TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.289 | $0.252 | $0.218 | $0.178 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.158 | $0.139 | $0.132 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 31190103 | Manufacturer | METZ CONNECT |
|---|---|---|---|
| Description | SHROUDED HEADER, RIGHT ANGLE, TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 181202 pcs | Data sheet | U Contact Catalog |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 300V | Type | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw | - | Termination Style | Solder |
| Series | - | Screw Size | - |
| Positions Per Level | 3 | Plug Wire Entry | - |
| Pitch | 0.150" (3.81mm) | Packaging | Tape & Reel (TR) |
| Other Names | 1849-1241 | Operating Temperature | -40°C ~ 105°C |
| Number of Positions | 3 | Number of Levels | 1 |
| Mounting Type | Through Hole | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 2 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.272" (6.91mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA6T), Nylon 6T | Header Orientation | 90°, Right Angle |
| Features | - | Detailed Description | 3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) 90°, Right Angle Through Hole |
| Current - UL | 8A | Current - IEC | - |
| Contact Tail Length | 0.138" (3.50mm) | Contact Mating Finish | Tin |
| Contact Material | Copper Alloy | Color | Black |
