PT-6503

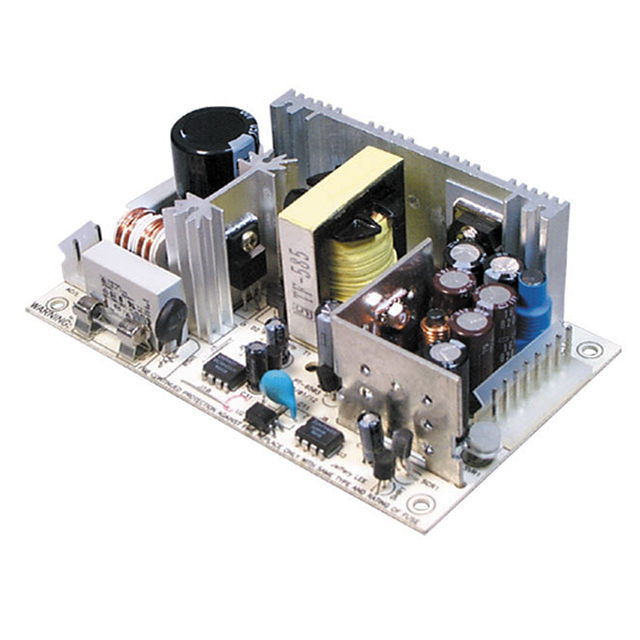

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PT-6503 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PT-6503 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PT-6503 |
|---|---|
| Manufacturer | MEAN WELL |
| Description | AC/DC CONVERTER 3.3V 5V 12V 62W |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $8.487 | $7.989 | $7.74 | $7.49 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PT-6503 | Manufacturer | MEAN WELL |
|---|---|---|---|
| Description | AC/DC CONVERTER 3.3V 5V 12V 62W | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5177 pcs | Data sheet | PT-6503 Datasheet |
| Category | Power Supplies - External/Internal (Off-Board) | Voltage - Output 4 | - |
| Voltage - Output 3 | 12V | Voltage - Output 2 | 5V |
| Voltage - Output 1 | 3.3V | Voltage - Isolation | 3kV |
| Voltage - Input | 90 ~ 264 VAC, 127 ~ 370 VDC | Type | Open Frame |
| Size / Dimension | 5.00" L x 2.99" W x 1.65" H (127.0mm x 76.0mm x 42.0mm) | Series | PT-6503 |
| Power (Watts) | 62W | Other Names | 1866-3927 PT-6503-ND |
| Operating Temperature | -10°C ~ 60°C (With Derating) | Number of Outputs | 3 |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Minimum Load Required | No | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Adjustable Output, Universal Input |
| Efficiency | 72% | Detailed Description | Open Frame AC DC Converter 3 Output 3.3V 5V 12V 6A, 6A, 1A 90 ~ 264 VAC, 127 ~ 370 VDC Input |
| Current - Output (Max) | 6A, 6A, 1A | Approvals | CB, CE, cURus, TUV |
| Applications | ITE (Commercial) |
