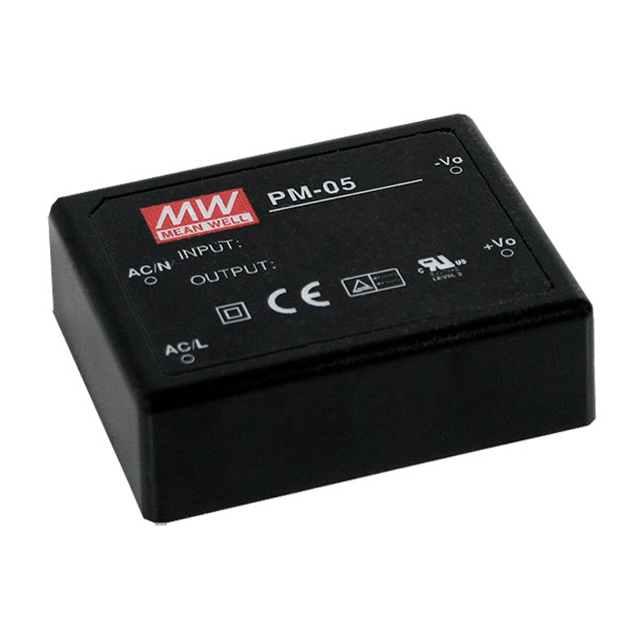

PM-05-15
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PM-05-15 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PM-05-15 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PM-05-15 |
|---|---|
| Manufacturer | MEAN WELL |
| Description | AC/DC CONVERTER 15V 5W |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.359 | $4.233 | $3.984 | $3.859 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PM-05-15 | Manufacturer | MEAN WELL |
|---|---|---|---|
| Description | AC/DC CONVERTER 15V 5W | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7818 pcs | Data sheet | PM-05 Series Datasheet |
| Category | Power Supplies - Board Mount | Voltage - Output 4 | - |
| Voltage - Output 3 | - | Voltage - Output 2 | - |
| Voltage - Output 1 | 15V | Voltage - Input | 85 ~ 264 VAC |
| Type | Enclosed | Size / Dimension | 2.47" L x 1.97" W x 0.78" H (62.9mm x 50.0mm x 19.7mm) |
| Series | PM-05 | Power (Watts) | 5W |
| Package / Case | 4-DIP Module | Other Names | 1866-3873 PM-05-15-ND |
| Operating Temperature | -20°C ~ 70°C (With Derating) | Number of Outputs | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 16 Weeks | Load Regulation | ±1% |
| Line Regulation | ±0.5% | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | DC Input Capable, Universal Input | Efficiency | 74% |
| Detailed Description | Enclosed AC DC Converter 1 Output 15V 330mA 85 ~ 264 VAC Input | Current - Output (Max) | 330mA |
| Approvals | CB, CE, cURus, TUV | Applications | Medical |
