PLN-100-12

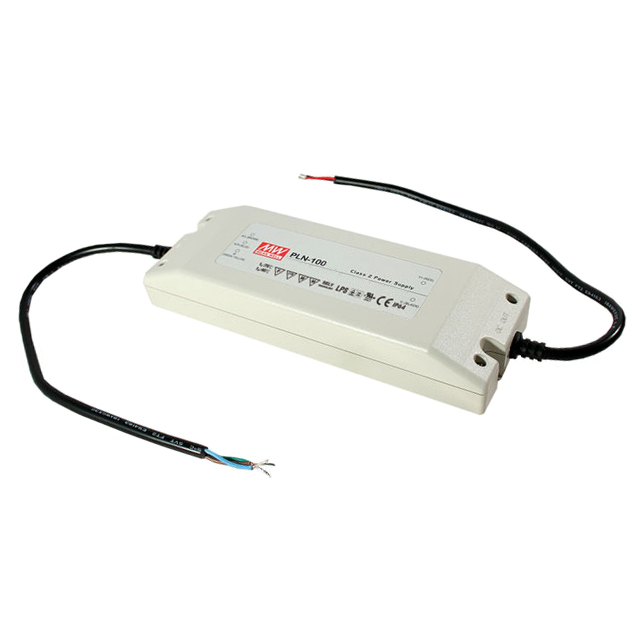

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PLN-100-12 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PLN-100-12 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PLN-100-12 |
|---|---|
| Manufacturer | MEAN WELL |
| Description | LED DRIVER CC/CV AC/DC 9-12V 5A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 20 pcs | ||||
|---|---|---|---|---|---|
| $14.103 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PLN-100-12 | Manufacturer | MEAN WELL |
|---|---|---|---|
| Description | LED DRIVER CC/CV AC/DC 9-12V 5A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2630 pcs | Data sheet | PLN-100 Series Datasheet |
| Category | Power Supplies - External/Internal (Off-Board) | Voltage - Output | 9 ~ 12 V |
| Voltage - Isolation | 3.75kV | Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 295VAC | Type | Constant Current, Voltage |
| Topology | AC DC Converter | Termination Style | Wire Leads |
| Size / Dimension | 7.87" L x 2.78" W x 1.38" H (200.0mm x 70.5mm x 35.0mm) | Series | PLN-100 |
| Ratings | IP64 | Power (Watts) | 60W |
| Operating Temperature | -30°C ~ 50°C | Number of Outputs | 1 |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | OCP, OTP, OVP, SCP |
| Efficiency | 83% | Dimming | - |
| Detailed Description | 5A 9 ~ 12 V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output | Current - Output (Max) | 5A |
| Approvals | CB, CE, cURus, PSE, TUV |
