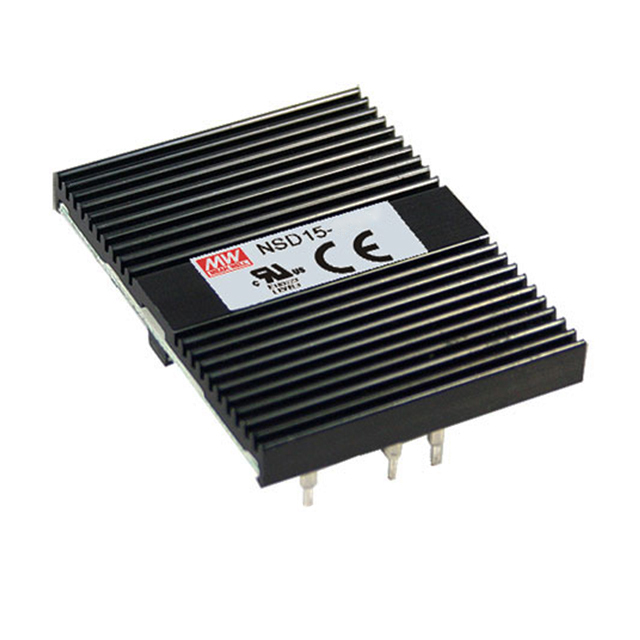

NSD15-48D12
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NSD15-48D12 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NSD15-48D12 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NSD15-48D12 |
|---|---|
| Manufacturer | MEAN WELL |
| Description | DC DC CONVERTER +/-12V 15W |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.628 | $5.541 | $5.456 | $5.286 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | NSD15-48D12 | Manufacturer | MEAN WELL |
|---|---|---|---|
| Description | DC DC CONVERTER +/-12V 15W | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5856 pcs | Data sheet | NSD15-D Series Datasheet |
| Category | Power Supplies - Board Mount | Voltage - Output 4 | - |
| Voltage - Output 3 | - | Voltage - Output 2 | -12V |
| Voltage - Output 1 | 12V | Voltage - Isolation | 1500V |
| Voltage - Input (Min) | 18V | Voltage - Input (Max) | 72V |
| Type | Isolated Module | Supplier Device Package | - |
| Size / Dimension | 2.00" L x 1.50" W x 0.39" H (50.8mm x 38.1mm x 9.8mm) | Series | NSD15-D |
| Power (Watts) | 15W | Packaging | - |
| Package / Case | 8-DIP Module, 7 Leads | Other Names | 1866-3634 NSD15-48D12-ND |
| Operating Temperature | -25°C ~ 70°C (With Derating) | Number of Outputs | 2 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Remote On/Off, OCP, OVP, SCP | Efficiency | 84% |
| Detailed Description | Isolated Module DC DC Converter 2 Output 12V -12V 620mA, 620mA 18V - 72V Input | Current - Output (Max) | 620mA, 620mA |
| Applications | ITE (Commercial) |
