Home > Products > Power Supplies - External/Internal (Off-Board) > AC DC Converters > NED-75A

NED-75A

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NED-75A with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	NED-75A
Manufacturer	MEAN WELL
Description	AC/DC CONVERTER 5V 12V 71W
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 3966 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$9.636

Product parameter
Data sheet

Product parameter

Part Number	NED-75A	Manufacturer	MEAN WELL
Description	AC/DC CONVERTER 5V 12V 71W	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3966 pcs	Data sheet	NED-75 Series Datasheet
Category	Power Supplies - External/Internal (Off-Board)	Voltage - Output 4	-
Voltage - Output 3	-	Voltage - Output 2	12V
Voltage - Output 1	5V	Voltage - Isolation	3kV
Voltage - Input	85 ~ 264 VAC, 120 ~ 370 VDC	Type	Enclosed
Size / Dimension	6.26" L x 3.82" W x 1.50" H (159.0mm x 97.0mm x 38.0mm)	Series	NED-75
Power (Watts)	71W	Operating Temperature	-20°C ~ 60°C (With Derating)
Number of Outputs	2	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Minimum Load Required	Yes
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Adjustable Output, Universal Input
Efficiency	78%	Detailed Description	Enclosed AC DC Converter 2 Output 5V 12V 7A, 3A 85 ~ 264 VAC, 120 ~ 370 VDC Input
Current - Output (Max)	7A, 3A	Approvals	CB, cURus
Applications	ITE (Commercial)

Related products
Related news

Related products

NMP1K2-C#KKEC-00 Image

Part#:~~NMP1K2-C#KKEC-00~~
Manufacturers:~~MEAN WELL~~
Description:~~NMP CONFIGURABLE POWER SUPPLY 12~~
In Stock:~~171~~

~~$196.694/pcs~~RFQ

NMP1K2-HK##EE-05 Image

Part#:~~NMP1K2-HK##EE-05~~
Manufacturers:~~MEAN WELL~~
Description:~~NMP CONFIGURABLE POWER SUPPLY 12~~
In Stock:~~211~~

~~$170.694/pcs~~RFQ

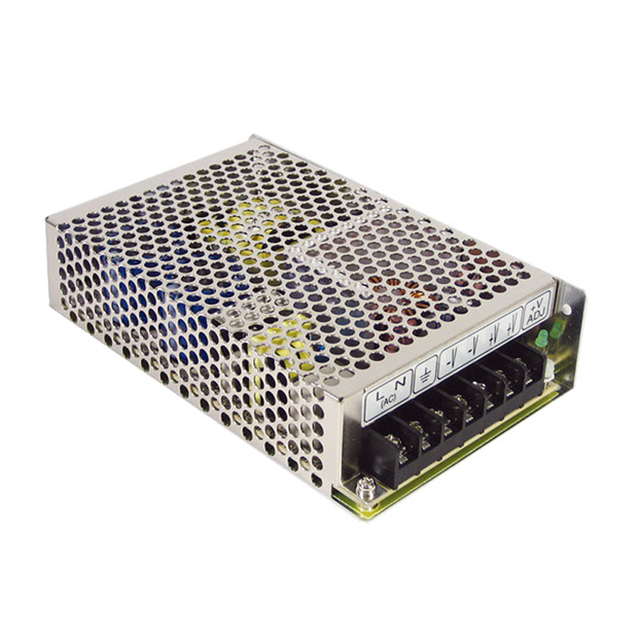

Part#:~~NED-75B~~
