LPF-25-36

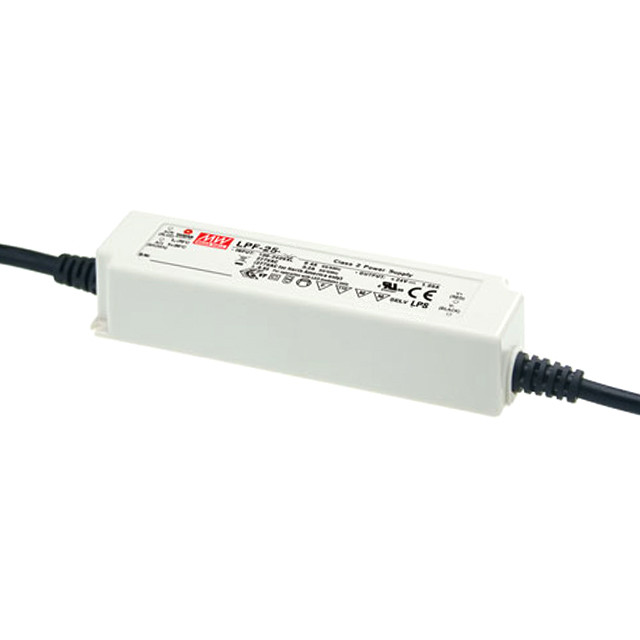

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LPF-25-36 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy LPF-25-36 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LPF-25-36 |
|---|---|
| Manufacturer | MEAN WELL |
| Description | LED DVR CCCV ACDC 19.8-36V 700MA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $8.303 | $7.521 | $7.363 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | LPF-25-36 | Manufacturer | MEAN WELL |
|---|---|---|---|
| Description | LED DVR CCCV ACDC 19.8-36V 700MA | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4647 pcs | Data sheet | LPF-25 Series Datasheet |
| Category | Power Supplies - External/Internal (Off-Board) | Voltage - Output | 19.8 ~ 36 V |
| Voltage - Isolation | 3.75kV | Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 305VAC | Type | Constant Current, Voltage |
| Topology | AC DC Converter | Termination Style | Wire Leads |
| Size / Dimension | 5.83" L x 1.57" W x 1.26" H (148.0mm x 40.0mm x 32.0mm) | Series | LPF-25 |
| Ratings | IP67 | Power (Watts) | 25W |
| Other Names | 1866-3179 LPF-25-36-ND |
Operating Temperature | -35°C ~ 70°C |
| Number of Outputs | 1 | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | OCP, OTP, OVP, SCP |
| Efficiency | 86% | Dimming | - |
| Detailed Description | 700mA 19.8 ~ 36 V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output | Current - Output (Max) | 700mA |
| Approvals | CB, CCC, CE, cURus, ENEC, PSE |
