DPU01L-05

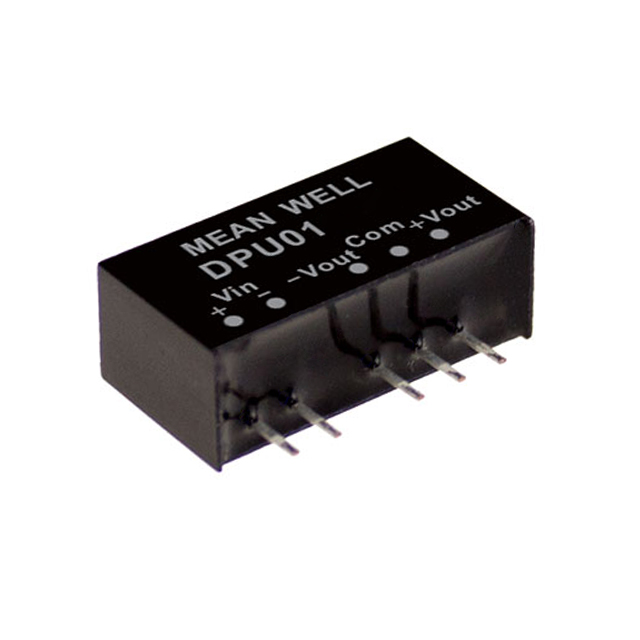

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DPU01L-05 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DPU01L-05 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DPU01L-05 |
|---|---|
| Manufacturer | MEAN WELL |
| Description | DC DC CONVERTER +/-5V 1W |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.018 | $0.991 | $0.961 | $0.932 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | DPU01L-05 | Manufacturer | MEAN WELL |
|---|---|---|---|
| Description | DC DC CONVERTER +/-5V 1W | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 34127 pcs | Data sheet | SPU01, DPU01_Series Datasheet |
| Category | Power Supplies - Board Mount | Voltage - Output 4 | - |
| Voltage - Output 3 | - | Voltage - Output 2 | -5V |
| Voltage - Output 1 | 5V | Voltage - Isolation | 1500V |
| Voltage - Input (Min) | 4.5V | Voltage - Input (Max) | 5.5V |
| Type | Isolated Module | Supplier Device Package | 6-SIP |
| Size / Dimension | 0.77" L x 0.24" W x 0.40" H (19.5mm x 6.1mm x 10.2mm) | Series | DPU01 |
| Power (Watts) | 1W | Packaging | - |
| Package / Case | 6-SIP Module, 5 Leads | Other Names | 1866-1407 DPU01L-05-ND |
| Operating Temperature | -40°C ~ 90°C (With Derating) | Number of Outputs | 2 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 18 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | SCP | Efficiency | 78% |
| Detailed Description | Isolated Module DC DC Converter 2 Output 5V -5V 100mA, 100mA 4.5V - 5.5V Input | Current - Output (Max) | 100mA, 100mA |
| Applications | ITE (Commercial) |
