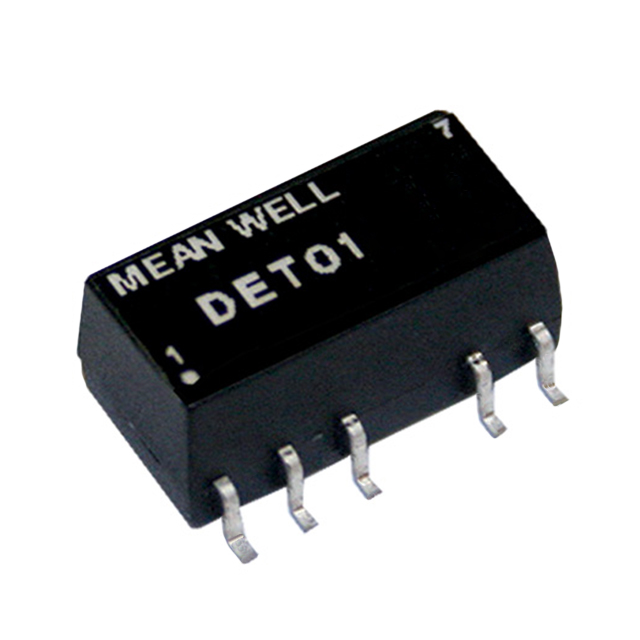

DET01L-09
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DET01L-09 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DET01L-09 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DET01L-09 |
|---|---|
| Manufacturer | MEAN WELL |
| Description | DC DC CONVERTER +/-9V 1W |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.823 | $1.77 | $1.718 | $1.666 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | DET01L-09 | Manufacturer | MEAN WELL |
|---|---|---|---|
| Description | DC DC CONVERTER +/-9V 1W | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22489 pcs | Data sheet | DET01 Series Datasheet |
| Category | Power Supplies - Board Mount | Voltage - Output 4 | - |
| Voltage - Output 3 | - | Voltage - Output 2 | -9V |
| Voltage - Output 1 | 9V | Voltage - Isolation | 3000V |
| Voltage - Input (Min) | 4.5V | Voltage - Input (Max) | 5.5V |
| Type | Isolated Module | Supplier Device Package | - |
| Size / Dimension | 0.60" L x 0.30" W x 0.26" H (15.2mm x 7.5mm x 6.5mm) | Series | DET01 |
| Power (Watts) | 1W | Packaging | - |
| Package / Case | 12-SMD Module, 10 Leads | Other Names | 1866-1288 DET01L-09-ND |
| Operating Temperature | -40°C ~ 85°C (With Derating) | Number of Outputs | 2 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | OCP, SCP | Efficiency | 75% |
| Detailed Description | Isolated Module DC DC Converter 2 Output 9V -9V 56mA, 56mA 4.5V - 5.5V Input | Current - Output (Max) | 56mA, 56mA |
| Applications | ITE (Commercial) |
