DCWN03C-12

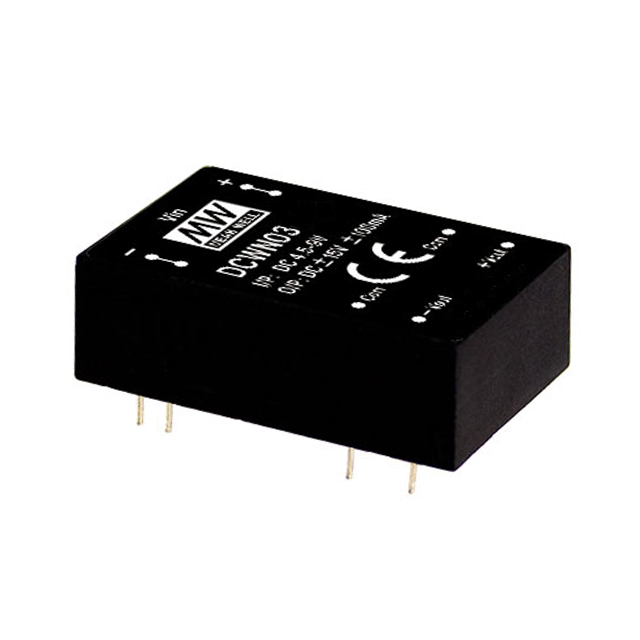

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DCWN03C-12 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DCWN03C-12 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DCWN03C-12 |
|---|---|
| Manufacturer | MEAN WELL |
| Description | DC DC CONVERTER +/-12V 3W |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.087 | $3.00 | $2.911 | $2.823 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | DCWN03C-12 | Manufacturer | MEAN WELL |
|---|---|---|---|
| Description | DC DC CONVERTER +/-12V 3W | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13655 pcs | Data sheet | SCWN03, DCWN03 Series Datasheet~ |
| Category | Power Supplies - Board Mount | Voltage - Output 4 | - |
| Voltage - Output 3 | - | Voltage - Output 2 | -12V |
| Voltage - Output 1 | 12V | Voltage - Isolation | 3000V |
| Voltage - Input (Min) | 36V | Voltage - Input (Max) | 72V |
| Type | Isolated Module | Supplier Device Package | - |
| Size / Dimension | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | Series | DCWN03 |
| Power (Watts) | 3W | Packaging | - |
| Package / Case | 24-DIP Module, 8 Leads | Other Names | 1866-1282 DCWN03C-12-ND |
| Operating Temperature | -40°C ~ 90°C (With Derating) | Number of Outputs | 2 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 18 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | OCP, SCP, UVLO | Efficiency | 87% |
| Detailed Description | Isolated Module DC DC Converter 2 Output 12V -12V 125mA, 125mA 36V - 72V Input | Current - Output (Max) | 125mA, 125mA |
| Applications | ITE (Commercial) |
