LDS-C815RI

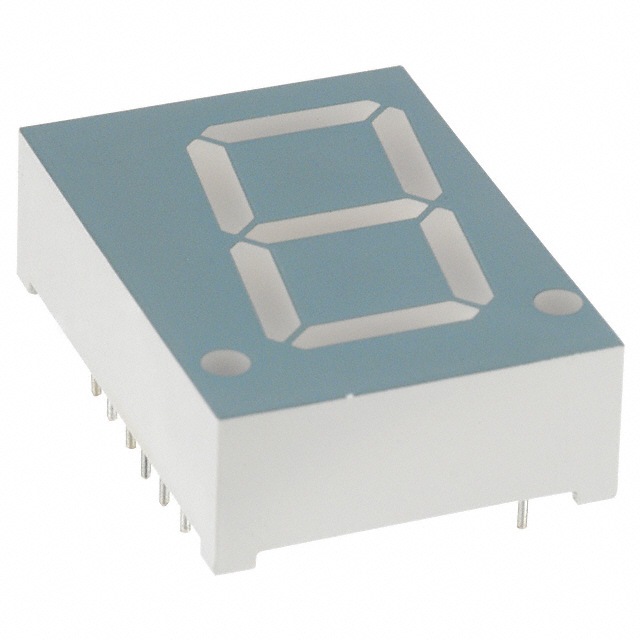

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LDS-C815RI with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy LDS-C815RI with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LDS-C815RI |
|---|---|
| Manufacturer | Lumex, Inc. |
| Description | LED 7SEG .80" SGL 695NM HRED CC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | LDS-C815RI | Manufacturer | Lumex, Inc. |
|---|---|---|---|
| Description | LED 7SEG .80" SGL 695NM HRED CC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5646 pcs | Data sheet | LDS-C815RI |
| Category | Optoelectronics | Wavelength - Peak | 700nm |
| Voltage - Forward (Vf) (Typ) | 2V | Size / Dimension | 1.091" H x 0.787" W x 0.331" D (27.70mm x 20.00mm x 8.40mm) |
| Series | - | Power Dissipation (Max) | 120mW |
| Packaging | Bulk | Package / Case | 16-DIP (0.600", 15.24mm), 13 Leads |
| Number of Characters | 1 | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Millicandela Rating | 0.9mcd | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Display Type | 7-Segment | Digit/Alpha Size | 0.80" (20.32mm) |
| Detailed Description | Character LED Display Module Red 7-Segment 1 Character Common Cathode 2V 10mA 1.091" H x 0.787" W x 0.331" D (27.70mm x 20.00mm x 8.40mm) 16-DIP (0.600", 15.24mm), 13 Leads | Current - Test | 10mA |
| Common Pin | Common Cathode | Color | Red |
