LCM-S01601DSR

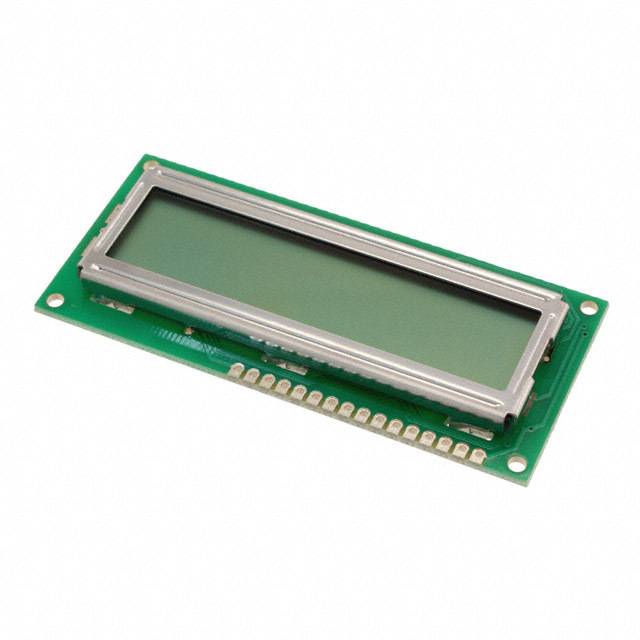

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LCM-S01601DSR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy LCM-S01601DSR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LCM-S01601DSR |
|---|---|
| Manufacturer | Lumex, Inc. |
| Description | LCD MODULE 16X1 CHARACTER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 135 pcs | |
|---|---|---|---|---|---|
| $4.439 | $4.021 | $3.183 | $2.681 | ||
| 270 pcs | 540 pcs | 1080 pcs | |||
| $2.513 | $2.304 | $2.178 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | LCM-S01601DSR | Manufacturer | Lumex, Inc. |
|---|---|---|---|
| Description | LCD MODULE 16X1 CHARACTER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 16823 pcs | Data sheet | LCM-x01601Dxx Drawing |
| Category | Optoelectronics | Voltage - Supply | 5V |
| Viewing Area | 66.00mm L x 16.00mm W | Text Color | - |
| Series | - | Outline L x W x H | 80.00mm x 36.00mm x 8.80mm |
| Other Names | 67-1767 LCMS01601DSR |
Operating Temperature | 0°C ~ 50°C |
| Number of Characters | 16 | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Interface | Parallel | Dot Size | 0.55mm W x 0.75mm H |
| Display Type | STN - Super-Twisted Nematic | Display Mode | Reflective |
| Display Format | 16 x 1 | Detailed Description | Character LCD Display Module Reflective 5 x 8 Dots STN - Super-Twisted Nematic Without Backlight Parallel 80.00mm x 36.00mm x 8.80mm |
| Character Size | 6.56mm H x 3.07mm W | Character Format | 5 x 8 Dots |
| Backlight | Without Backlight | Background Color | Green |
