LTV-844HM

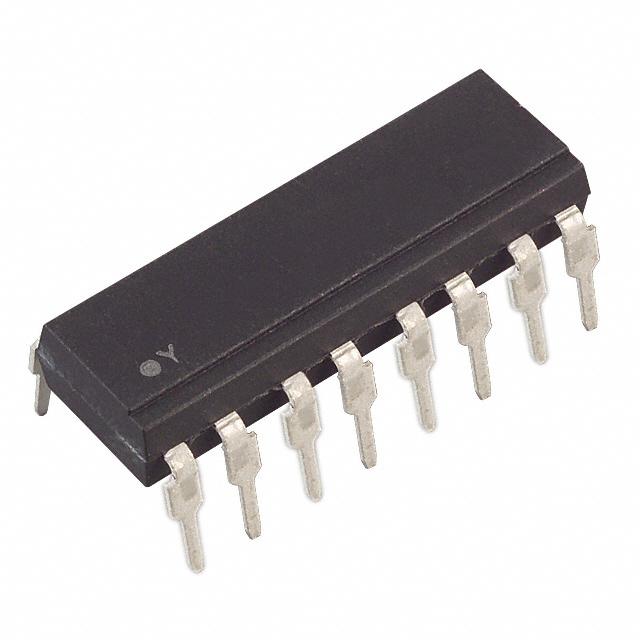

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LTV-844HM with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy LTV-844HM with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LTV-844HM |
|---|---|
| Manufacturer | Lite-On, Inc. |
| Description | OPTOISOLTR 5KV 4CH TRANS 16-DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | ||||
|---|---|---|---|---|---|
| $0.21 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | LTV-844HM | Manufacturer | Lite-On, Inc. |
|---|---|---|---|
| Description | OPTOISOLTR 5KV 4CH TRANS 16-DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 103601 pcs | Data sheet | LTV-814H/824H/844H (M,S,S-TA1) |
| Category | Isolators | Voltage - Output (Max) | 35V |
| Voltage - Isolation | 5000Vrms | Voltage - Forward (Vf) (Typ) | 1.4V |
| Vce Saturation (Max) | 200mV | Turn On / Turn Off Time (Typ) | - |
| Supplier Device Package | 16-DIP | Series | - |
| Rise / Fall Time (Typ) | 4µs, 3µs | Packaging | Tube |
| Package / Case | 16-DIP (0.300", 7.62mm) | Output Type | Transistor |
| Other Names | LTV844HM | Operating Temperature | -30°C ~ 100°C |
| Number of Channels | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | AC, DC |
| Detailed Description | Optoisolator Transistor Output 5000Vrms 4 Channel 16-DIP | Current Transfer Ratio (Min) | 20% @ 100mA |
| Current Transfer Ratio (Max) | 80% @ 100mA | Current - Output / Channel | 80mA |
| Current - DC Forward (If) (Max) | 150mA |
