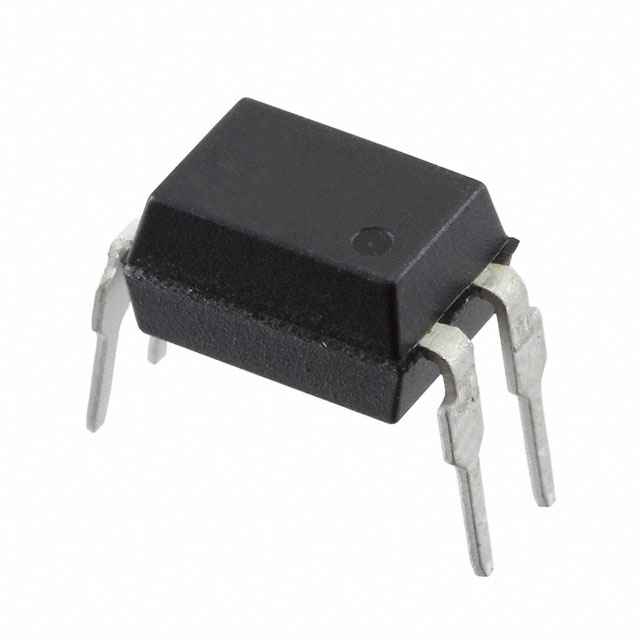

LTV-817D
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LTV-817D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy LTV-817D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LTV-817D |
|---|---|
| Manufacturer | Lite-On, Inc. |
| Description | OPTOISOLATR 5KV TRANSISTOR 4-DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | ||||
|---|---|---|---|---|---|
| $0.04 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | LTV-817D | Manufacturer | Lite-On, Inc. |
|---|---|---|---|
| Description | OPTOISOLATR 5KV TRANSISTOR 4-DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 514983 pcs | Data sheet | LTV-817 Series Datasheet |
| Category | Isolators | Voltage - Output (Max) | 35V |
| Voltage - Isolation | 5000Vrms | Voltage - Forward (Vf) (Typ) | 1.2V |
| Vce Saturation (Max) | 200mV | Turn On / Turn Off Time (Typ) | - |
| Supplier Device Package | 4-DIP | Series | - |
| Rise / Fall Time (Typ) | 4µs, 3µs | Packaging | Tube |
| Package / Case | 4-DIP (0.300", 7.62mm) | Output Type | Transistor |
| Operating Temperature | -30°C ~ 110°C | Number of Channels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | DC | Detailed Description | Optoisolator Transistor Output 5000Vrms 1 Channel 4-DIP |
| Current Transfer Ratio (Min) | 300% @ 5mA | Current Transfer Ratio (Max) | 600% @ 5mA |
| Current - Output / Channel | 50mA | Current - DC Forward (If) (Max) | 50mA |
