LTV-814HS

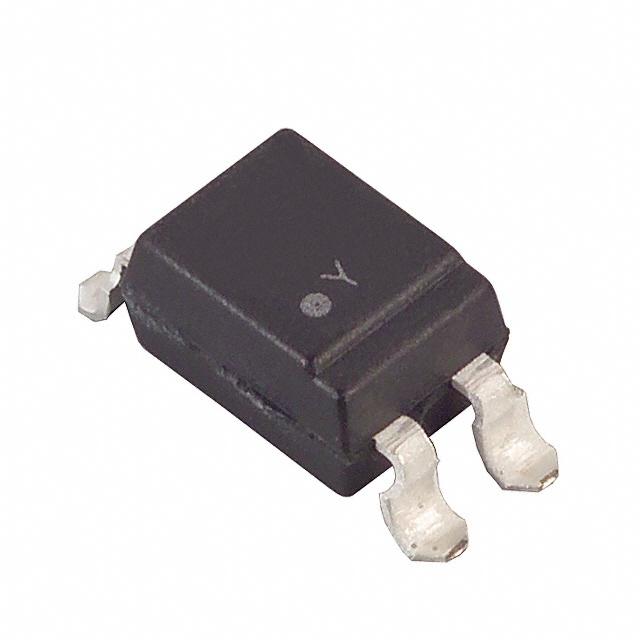

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LTV-814HS with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy LTV-814HS with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LTV-814HS |
|---|---|
| Manufacturer | Lite-On, Inc. |
| Description | OPTOISOLATR 5KV TRANSISTOR 4-SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | 300 pcs |
|---|---|---|---|---|---|
| $0.188 | $0.146 | $0.122 | $0.105 | $0.094 | |
| 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.081 | $0.062 | $0.056 | $0.053 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | LTV-814HS | Manufacturer | Lite-On, Inc. |
|---|---|---|---|
| Description | OPTOISOLATR 5KV TRANSISTOR 4-SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 389773 pcs | Data sheet | LTV-814H/824H/844H (M,S,S-TA1) |
| Category | Isolators | Voltage - Output (Max) | 35V |
| Voltage - Isolation | 5000Vrms | Voltage - Forward (Vf) (Typ) | 1.4V |
| Vce Saturation (Max) | 200mV | Turn On / Turn Off Time (Typ) | - |
| Supplier Device Package | 4-SMD | Series | - |
| Rise / Fall Time (Typ) | 4µs, 3µs | Packaging | Tube |
| Package / Case | 4-SMD, Gull Wing | Output Type | Transistor |
| Other Names | 160-1351-5 LTV814HS |
Operating Temperature | -30°C ~ 100°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | AC, DC |
| Detailed Description | Optoisolator Transistor Output 5000Vrms 1 Channel 4-SMD | Current Transfer Ratio (Min) | 20% @ 100mA |
| Current Transfer Ratio (Max) | 80% @ 100mA | Current - Output / Channel | 80mA |
| Current - DC Forward (If) (Max) | 150mA |
