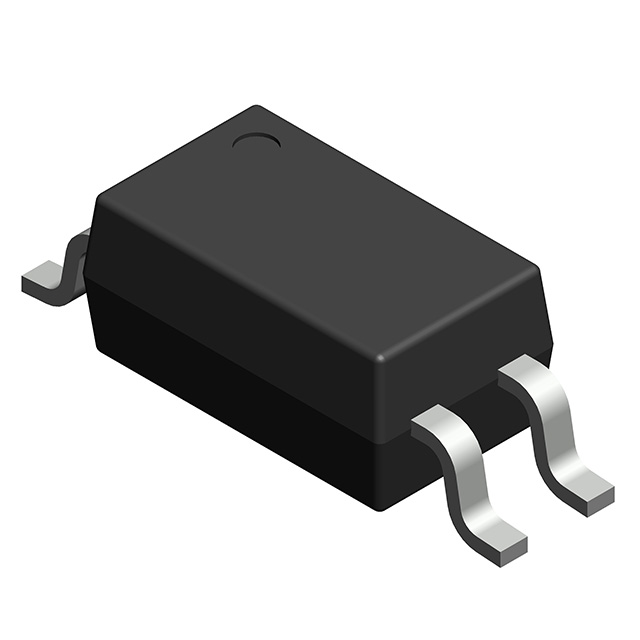

LTV-217-G
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LTV-217-G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy LTV-217-G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LTV-217-G |
|---|---|
| Manufacturer | Lite-On, Inc. |
| Description | OPTOISOLATOR 3.75KV TRANS 4-SSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.244 | $0.177 | $0.144 | $0.115 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $0.097 | $0.083 | $0.065 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | LTV-217-G | Manufacturer | Lite-On, Inc. |
|---|---|---|---|
| Description | OPTOISOLATOR 3.75KV TRANS 4-SSOP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 310860 pcs | Data sheet | LTV-217-G Series |
| Category | Isolators | Voltage - Output (Max) | 70V |
| Voltage - Isolation | 3750Vrms | Voltage - Forward (Vf) (Typ) | 1.2V |
| Vce Saturation (Max) | 400mV | Turn On / Turn Off Time (Typ) | 3µs, 3µs |
| Supplier Device Package | 4-SSOP | Series | - |
| Rise / Fall Time (Typ) | 2µs, 3µs | Packaging | Original-Reel® |
| Package / Case | 4-SOIC (0.173", 4.40mm Width) | Output Type | Transistor |
| Other Names | 160-2218-6 | Operating Temperature | -55°C ~ 110°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | DC |
| Detailed Description | Optoisolator Transistor Output 3750Vrms 1 Channel 4-SSOP | Current Transfer Ratio (Min) | 50% @ 5mA |
| Current Transfer Ratio (Max) | 600% @ 5mA | Current - Output / Channel | 50mA |
| Current - DC Forward (If) (Max) | 50mA |
