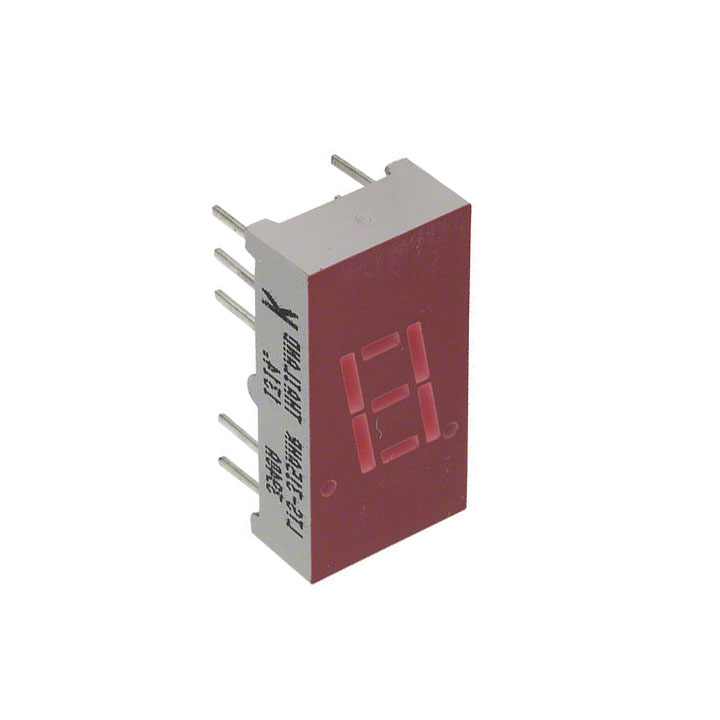

LTS-315AHR
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LTS-315AHR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy LTS-315AHR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LTS-315AHR |
|---|---|
| Manufacturer | Lite-On, Inc. |
| Description | LED 7-SEG 0.3" 1DGT HIEFF RED CC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $0.55 | $0.447 | $0.344 | $0.309 | $0.275 | |
| 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.234 | $0.192 | $0.183 | $0.179 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | LTS-315AHR | Manufacturer | Lite-On, Inc. |
|---|---|---|---|
| Description | LED 7-SEG 0.3" 1DGT HIEFF RED CC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 127957 pcs | Data sheet | LTS-315AHR |
| Category | Optoelectronics | Wavelength - Peak | 635nm |
| Voltage - Forward (Vf) (Typ) | 2V | Size / Dimension | 0.738" H x 0.388" W x 0.200" D (18.75mm x 9.85mm x 5.08mm) |
| Series | - | Power Dissipation (Max) | 75mW |
| Packaging | Tube | Package / Case | 14-DIP (0.300", 7.62mm), 10 Leads |
| Other Names | 160-1994-5 LTS-315AHR-ND LTS315AHR Q598744 |
Number of Characters | 1 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Millicandela Rating | 2mcd |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Display Type | 7-Segment | Digit/Alpha Size | 0.30" (7.62mm) |
| Detailed Description | Character LED Display Module Red 7-Segment 1 Character Common Cathode 2V 20mA 0.738" H x 0.388" W x 0.200" D (18.75mm x 9.85mm x 5.08mm) 14-DIP (0.300", 7.62mm), 10 Leads | Current - Test | 20mA |
| Common Pin | Common Cathode | Color | Red |
