LTS-2301AP

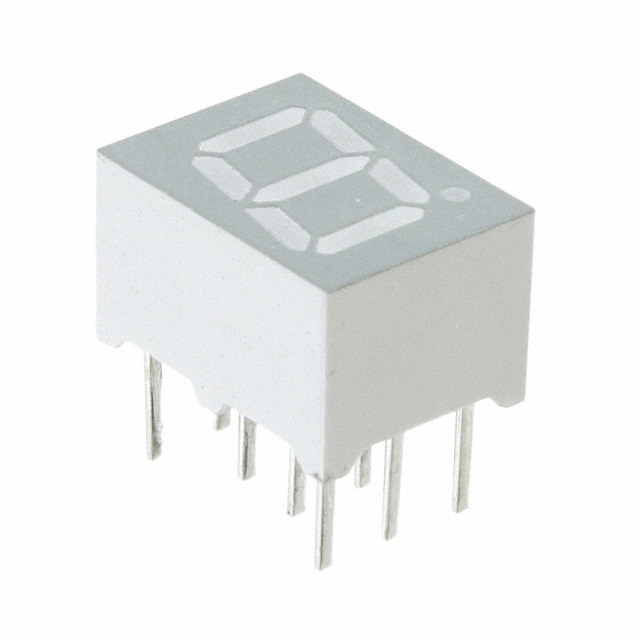

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LTS-2301AP with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy LTS-2301AP with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LTS-2301AP |
|---|---|
| Manufacturer | Lite-On, Inc. |
| Description | LED 7-SEG .28" 1DGT ALGAASRED CC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $0.615 | $0.544 | $0.404 | $0.351 | $0.316 | |
| 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.281 | $0.241 | $0.228 | $0.22 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | LTS-2301AP | Manufacturer | Lite-On, Inc. |
|---|---|---|---|
| Description | LED 7-SEG .28" 1DGT ALGAASRED CC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 90369 pcs | Data sheet | LTS-2301AP |
| Category | Optoelectronics | Wavelength - Peak | 697nm |
| Voltage - Forward (Vf) (Typ) | 2.1V | Size / Dimension | 0.394" H x 0.291" W x 0.240" D (10.00mm x 7.40mm x 6.10mm) |
| Series | - | Power Dissipation (Max) | 40mW |
| Packaging | Tube | Package / Case | 10-DIP (0.300", 7.62mm) |
| Other Names | 160-1990-5 LTS-2301AP-ND LTS2301AP Q717880A |
Number of Characters | 1 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Millicandela Rating | 0.75mcd |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Display Type | 7-Segment | Digit/Alpha Size | 0.28" (7.00mm) |
| Detailed Description | Character LED Display Module Red 7-Segment 1 Character Common Cathode 2.1V 20mA 0.394" H x 0.291" W x 0.240" D (10.00mm x 7.40mm x 6.10mm) 10-DIP (0.300", 7.62mm) | Current - Test | 20mA |
| Common Pin | Common Cathode | Color | Red |
