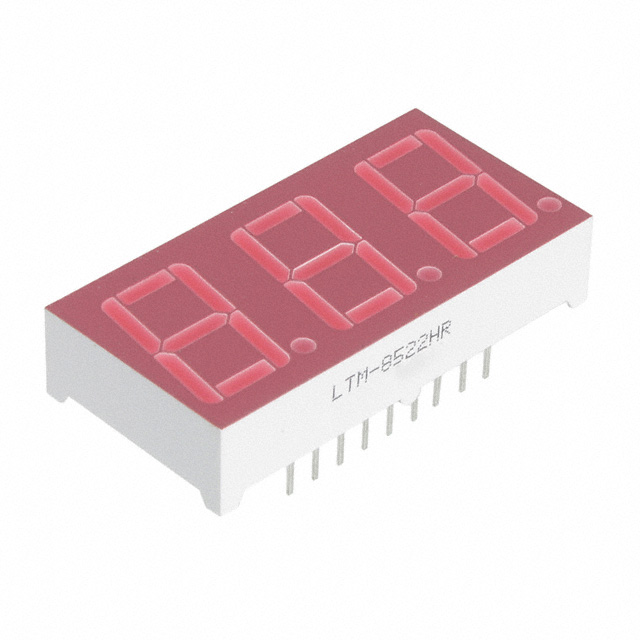

LTM-8522HR
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LTM-8522HR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy LTM-8522HR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LTM-8522HR |
|---|---|
| Manufacturer | Lite-On, Inc. |
| Description | LED 7-SEG .56" 3DIGIT HI-EFF RED |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 13 pcs | 26 pcs | 104 pcs | |
|---|---|---|---|---|---|
| $3.626 | $3.283 | $2.599 | $2.189 | ||
| 260 pcs | 507 pcs | 1001 pcs | |||
| $2.052 | $1.881 | $1.778 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | LTM-8522HR | Manufacturer | Lite-On, Inc. |
|---|---|---|---|
| Description | LED 7-SEG .56" 3DIGIT HI-EFF RED | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21572 pcs | Data sheet | LTM-8522HR |
| Category | Optoelectronics | Wavelength - Peak | 635nm |
| Voltage - Forward (Vf) (Typ) | - | Size / Dimension | 0.750" H x 1.484" W x 0.315" D (19.05mm x 37.70mm x 8.00mm) |
| Series | - | Power Dissipation (Max) | 335mW |
| Packaging | Tube | Package / Case | 18-DIP (0.600", 15.24mm) |
| Other Names | 160-1980-5 LTM-8522HR-ND LTM8522HR |
Number of Characters | 3 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Millicandela Rating | 2.4mcd |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Display Type | 7-Segment | Digit/Alpha Size | 0.56" (14.22mm) |
| Detailed Description | Character LED Display Module Red 7-Segment 3 Character Serial Input 0.4mA 0.750" H x 1.484" W x 0.315" D (19.05mm x 37.70mm x 8.00mm) 18-DIP (0.600", 15.24mm) | Current - Test | 0.4mA |
| Common Pin | Serial Input | Color | Red |
