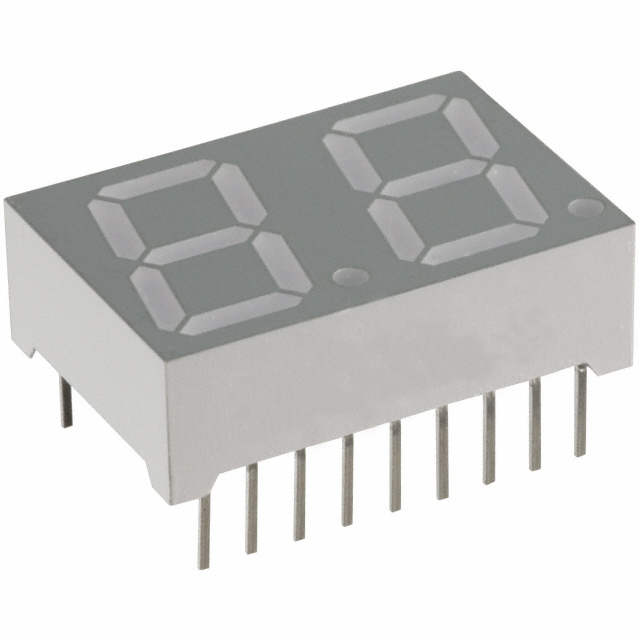

LTD-5523AB
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LTD-5523AB with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy LTD-5523AB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LTD-5523AB |
|---|---|
| Manufacturer | Lite-On, Inc. |
| Description | LED 7-SEGMENT .56" 2DGT BLUE CC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 20 pcs | 40 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $3.469 | $3.143 | $2.488 | $2.095 | ||
| 260 pcs | 500 pcs | 1000 pcs | |||
| $1.964 | $1.80 | $1.702 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | LTD-5523AB | Manufacturer | Lite-On, Inc. |
|---|---|---|---|
| Description | LED 7-SEGMENT .56" 2DGT BLUE CC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22833 pcs | Data sheet | LTD-5523AB |
| Category | Optoelectronics | Wavelength - Peak | 428nm |
| Voltage - Forward (Vf) (Typ) | 3.8V | Size / Dimension | 0.673" H x 0.984" W x 0.315" D (17.10mm x 25.00mm x 8.00mm) |
| Series | - | Power Dissipation (Max) | 95mW |
| Packaging | Tube | Package / Case | 18-DIP (0.600", 15.24mm) |
| Other Names | 160-1524-5 LTD-5523B LTD5523AB LTD5523B |
Number of Characters | 2 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Millicandela Rating | 4.3mcd |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Display Type | 7-Segment | Digit/Alpha Size | 0.56" (14.22mm) |
| Detailed Description | Character LED Display Module Blue 7-Segment 2 Character Common Cathode 3.8V 20mA 0.673" H x 0.984" W x 0.315" D (17.10mm x 25.00mm x 8.00mm) 18-DIP (0.600", 15.24mm) | Current - Test | 20mA |
| Common Pin | Common Cathode | Color | Blue |
