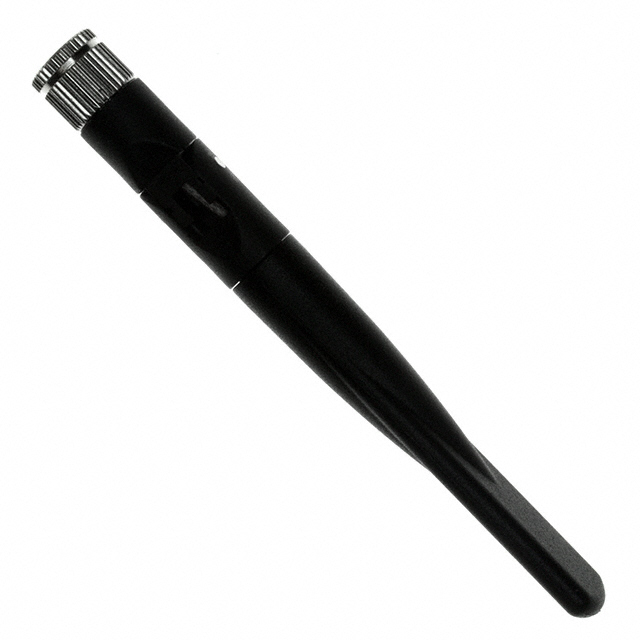

ANT-DB1-RAF-SMA
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ANT-DB1-RAF-SMA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ANT-DB1-RAF-SMA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ANT-DB1-RAF-SMA |
|---|---|
| Manufacturer | Linx Technologies |
| Description | RF ANT 2.45GHZ/5.3GHZ WHIP TILT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 25 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $3.691 | $3.414 | $3.243 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | ANT-DB1-RAF-SMA | Manufacturer | Linx Technologies |
|---|---|---|---|
| Description | RF ANT 2.45GHZ/5.3GHZ WHIP TILT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9175 pcs | Data sheet | ANT-DB1-RAF-(RPS, SMA) |
| Category | RF/IF and RFID | VSWR | 1.9 |
| Termination | Connector, SMA Male | Series | RAF |
| Return Loss | - | Packaging | Bulk |
| Other Names | ANTDB1RAFSMA Q3239693 |
Number of Bands | 2 |
| Mounting Type | Connector Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Height (Max) | 4.130" (104.90mm) |
| Gain | 2.5dBi, 4.6dBi | Frequency Range | 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.825GHz |
| Frequency Group | UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz) | Frequency (Center/Band) | 2.45GHz, 5.3GHz |
| Features | - | Detailed Description | 2.45GHz, 5.3GHz Bluetooth, Thread, Wi-Fi, Zigbee™ Whip, Tilt RF Antenna 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.825GHz 2.5dBi, 4.6dBi Connector, SMA Male Connector Mount |
| Applications | Bluetooth, Thread, Wi-Fi, Zigbee™ | Antenna Type | Whip, Tilt |
