TYS80401R0N-10

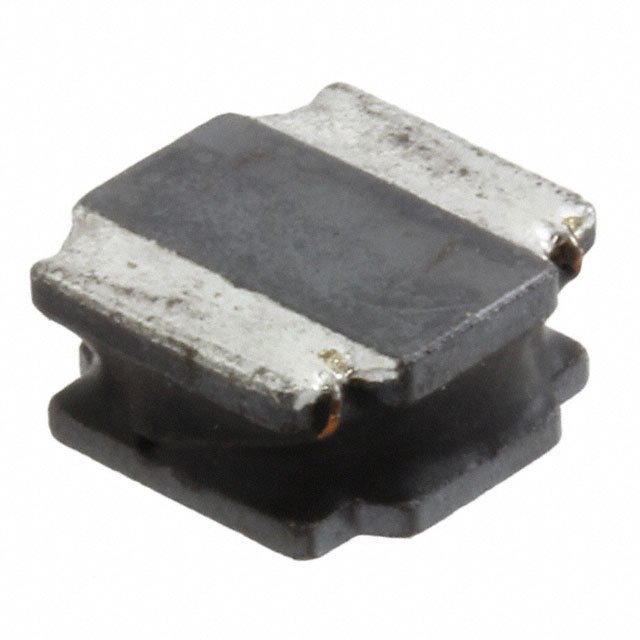

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TYS80401R0N-10 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TYS80401R0N-10 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TYS80401R0N-10 |
|---|---|
| Manufacturer | Laird Technologies |
| Description | FIXED IND 1UH 6.3A 8 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 4000 pcs | ||||
|---|---|---|---|---|---|
| $0.105 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TYS80401R0N-10 | Manufacturer | Laird Technologies |
|---|---|---|---|
| Description | FIXED IND 1UH 6.3A 8 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 229103 pcs | Data sheet | TYS80401R0N-10 DrawingFerrite EMI Cable Cores Catalog |
| Category | Inductors, Coils, Chokes | Type | - |
| Tolerance | ±30% | Supplier Device Package | - |
| Size / Dimension | 0.315" L x 0.315" W (8.00mm x 8.00mm) | Shielding | Shielded |
| Series | TYS8040 | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | 240-2753-2 |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 1µH |
| Height - Seated (Max) | 0.165" (4.20mm) | Frequency - Self Resonant | 89MHz |
| Detailed Description | 1µH Shielded Inductor 6.3A 8 mOhm Max Nonstandard | DC Resistance (DCR) | 8 mOhm Max |
| Current Rating | 6.3A | Current - Saturation | 9.85A |
