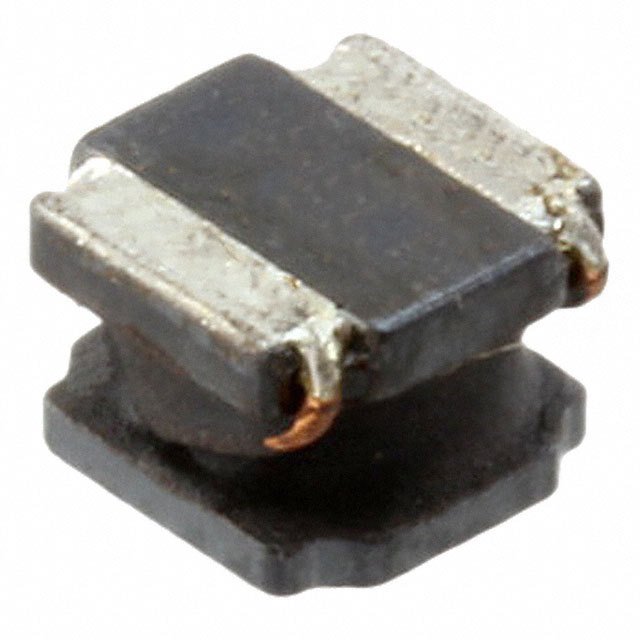

TYS40301R0N-10
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TYS40301R0N-10 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TYS40301R0N-10 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TYS40301R0N-10 |
|---|---|
| Manufacturer | Laird Technologies |
| Description | FIXED IND 1UH 4.15A 18.2 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | 4000 pcs | 6000 pcs | 10000 pcs | 50000 pcs |
|---|---|---|---|---|---|
| $0.08 | $0.075 | $0.073 | $0.071 | $0.066 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | TYS40301R0N-10 | Manufacturer | Laird Technologies |
|---|---|---|---|
| Description | FIXED IND 1UH 4.15A 18.2 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 329460 pcs | Data sheet | TYS40301R0N-10 DrawingFerrite EMI Cable Cores Catalog |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±30% | Supplier Device Package | - |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) | Shielding | Shielded |
| Series | TYS4030 | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | 240-2695-2 |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 1µH |
| Height - Seated (Max) | 0.118" (3.00mm) | Frequency - Self Resonant | 70MHz |
| Detailed Description | 1µH Shielded Wirewound Inductor 4.15A 18.2 mOhm Max Nonstandard | DC Resistance (DCR) | 18.2 mOhm Max |
| Current Rating | 4.15A | Current - Saturation | 5.26A |
