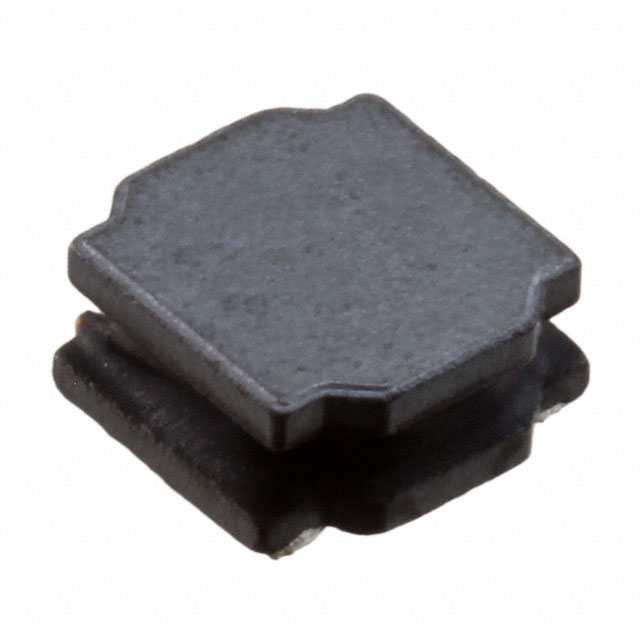

TYS40202R2N-10
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TYS40202R2N-10 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TYS40202R2N-10 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TYS40202R2N-10 |
|---|---|
| Manufacturer | Laird Technologies |
| Description | FIXED IND 2.2UH 1.85A 40 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | 6000 pcs | 15000 pcs | 30000 pcs | |
|---|---|---|---|---|---|
| $0.075 | $0.072 | $0.07 | $0.068 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | TYS40202R2N-10 | Manufacturer | Laird Technologies |
|---|---|---|---|
| Description | FIXED IND 2.2UH 1.85A 40 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 285129 pcs | Data sheet | TYS40202R2N-10 DrawingFerrite EMI Cable Cores Catalog |
| Category | Inductors, Coils, Chokes | Type | - |
| Tolerance | ±30% | Supplier Device Package | - |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) | Shielding | Shielded |
| Series | TYS4020 | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | 240-2685-2 |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 2.2µH |
| Height - Seated (Max) | 0.079" (2.00mm) | Frequency - Self Resonant | 49MHz |
| Detailed Description | 2.2µH Shielded Inductor 1.85A 40 mOhm Max Nonstandard | DC Resistance (DCR) | 40 mOhm Max |
| Current Rating | 1.85A | Current - Saturation | 3.4A |
