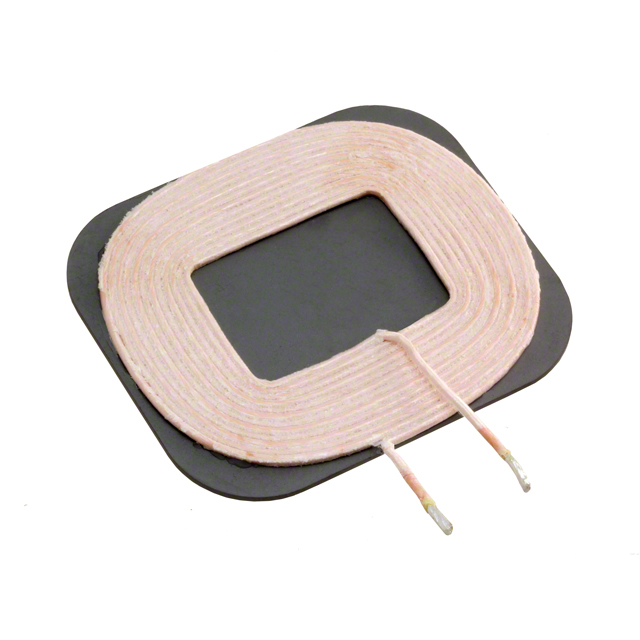

SWC5547AK120-500
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SWC5547AK120-500 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SWC5547AK120-500 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SWC5547AK120-500 |
|---|---|
| Manufacturer | Laird Technologies |
| Description | TX 1 COIL 1 LAYER 12.5UH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $2.626 | $2.387 | $1.623 | |||
| 500 pcs | 1000 pcs | 2500 pcs | |||
| $1.48 | $1.384 | $1.337 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SWC5547AK120-500 | Manufacturer | Laird Technologies |
|---|---|---|---|
| Description | TX 1 COIL 1 LAYER 12.5UH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 28857 pcs | Data sheet | SWC5547AK120-500 DatasheetFerrite EMI Cable Cores Catalog |
| Category | Inductors, Coils, Chokes | Type | 1 Coil, 1 Layer |
| Tolerance | ±10% | Series | SWC |
| Q @ Freq | 90 @ 100kHz | Other Names | 240-2781 |
| Operating Temperature | -40°C ~ 125°C | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance | 12.5µH | Function | Transmitter |
| Frequency - Self Resonant | - | Detailed Description | 1 Coil, 1 Layer 12.5µH Wireless Charging Coil Transmitter 65 mOhm Max |
| DC Resistance (DCR) | 65 mOhm Max | Current Rating | - |
| Current - Saturation | - |
