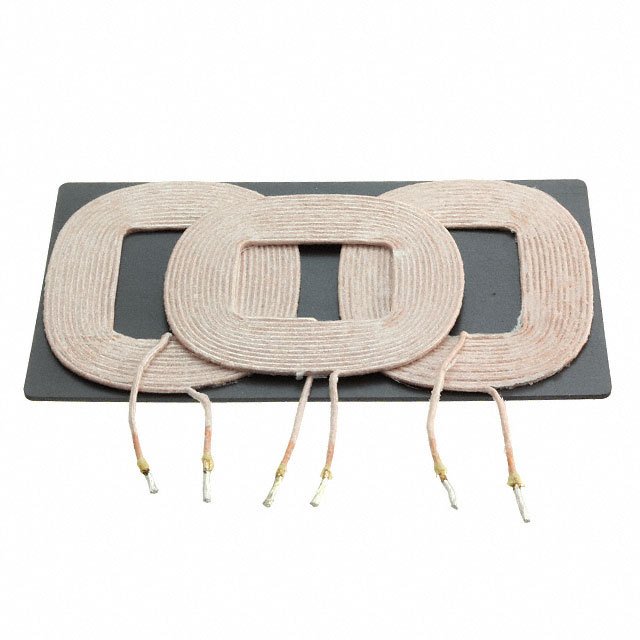

SWC10056AA120-500
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SWC10056AA120-500 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SWC10056AA120-500 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SWC10056AA120-500 |
|---|---|
| Manufacturer | Laird Technologies |
| Description | TRANSMITTER 3 COIL 1 LAYER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $4.194 | $3.88 | $3.146 | $2.936 | $2.789 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | SWC10056AA120-500 | Manufacturer | Laird Technologies |
|---|---|---|---|
| Description | TRANSMITTER 3 COIL 1 LAYER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10766 pcs | Data sheet | SWC10056AA120-500 DatasheetFerrite EMI Cable Cores Catalog |
| Category | Inductors, Coils, Chokes | Type | 3 Coil, 1 Layer |
| Tolerance | ±10% | Series | SWC |
| Q @ Freq | 90 @ 100kHz | Other Names | 240-2782 |
| Operating Temperature | -40°C ~ 125°C | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance | 12.5µH, 11.5µH, 12.5µH | Function | Transmitter |
| Frequency - Self Resonant | - | Detailed Description | 3 Coil, 1 Layer 12.5µH, 11.5µH, 12.5µH Wireless Charging Coil Transmitter 65 mOhm Max |
| DC Resistance (DCR) | 65 mOhm Max | Current Rating | - |
| Current - Saturation | - |
