CC2824J502R-10
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CC2824J502R-10 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CC2824J502R-10 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CC2824J502R-10 |
|---|---|
| Manufacturer | Laird Technologies |
| Description | CMC 5UH 1.2A 2LN 400 OHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1500 pcs | 3000 pcs | |||
|---|---|---|---|---|---|
| $1.22 | $1.178 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CC2824J502R-10 | Manufacturer | Laird Technologies |
|---|---|---|---|
| Description | CMC 5UH 1.2A 2LN 400 OHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 31695 pcs | Data sheet | Part Number GuideEMI Filtering/RF Inductors CatalogCC Series DatasheetCC2824J502R-10 DrawingFerrite EMI Cable Cores Catalog |
| Category | Filters | Voltage Rating - DC | 80V |
| Voltage Rating - AC | 42V | Size / Dimension | 0.354" L x 0.217" W (9.00mm x 5.50mm) |
| Series | CC | Ratings | - |
| Packaging | Tape & Reel (TR) | Package / Case | Horizontal, 4 Flat Lead |
| Other Names | 240-2445-2 | Operating Temperature | -40°C ~ 125°C |
| Number of Lines | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance @ Frequency | 5µH @ 100kHz |
| Impedance @ Frequency | 400 Ohms @ 500MHz | Height (Max) | 0.193" (4.90mm) |
| Filter Type | Signal Line | Features | - |
| Detailed Description | 5µH @ 100kHz 2 Line Common Mode Choke Surface Mount 400 Ohms @ 500MHz 1.2A DCR 130 mOhm | DC Resistance (DCR) (Max) | 130 mOhm |
| Current Rating (Max) | 1.2A | Approvals | - |
- Related products
- Related news
Related products
- Part#:

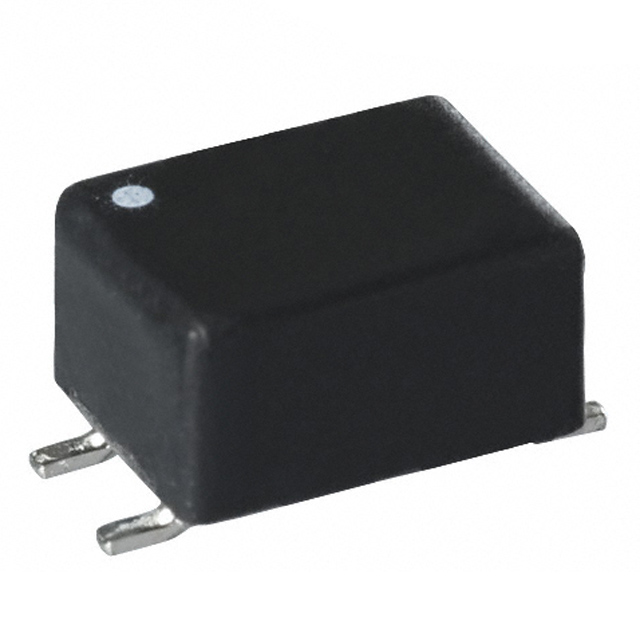

CC2824E513R-10 - Manufacturers:
