Home > Products > Fans, Thermal Management > Thermal - Thermoelectric, Peltier Modules > 71020-501

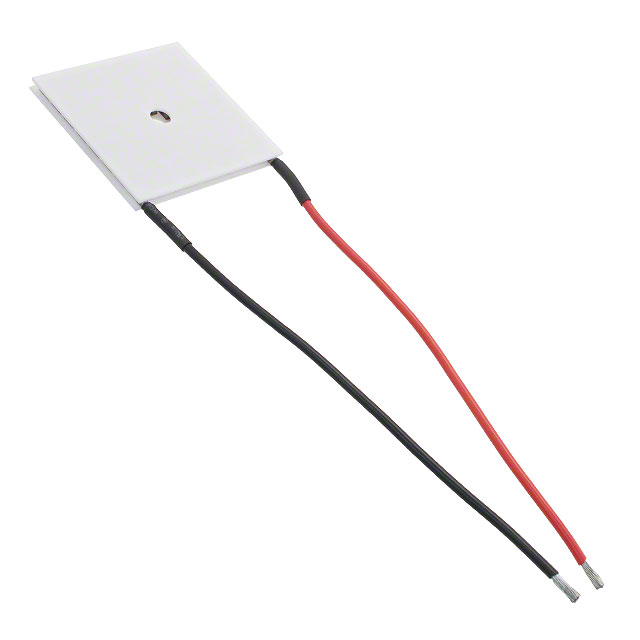

71020-501

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 71020-501 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	71020-501
Manufacturer	Laird Technologies - Thermal Products
Description	PELTIER SH14,125,045,L1,RT,W4.5
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 2853 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs
Reference Price (In US Dollars)	$14.016	$12.809	$12.406

Product parameter
Data sheet

Product parameter

Part Number	71020-501	Manufacturer	Laird Technologies - Thermal Products
Description	PELTIER SH14,125,045,L1,RT,W4.5	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2853 pcs	Data sheet	SH14,125,045 Datasheet
Category	Fans, Thermal Management	Voltage - Max	14.1V
Series	SH	Resistance	1.53 Ohms
Qmax @ Th	72.7W @ 25°C	Outline L x W x H	39.88mm x 39.88mm x 3.33mm
Other Names	1487-1136 71020501 926-1371 926-1371-ND SH14,125,045,L1,RT,W4.5	Operating Temperature	80°C
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	15 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Lead Wires, Sealed - Silicone RTV
Detailed Description	Peltier Module 39.88mm x 39.88mm x 3.33mm 72.7W @ 25°C 8.5A 80°C	Delta Tmax @ Th	67°C @ 25°C
Current - Max	8.5A
