LXM3-PD01

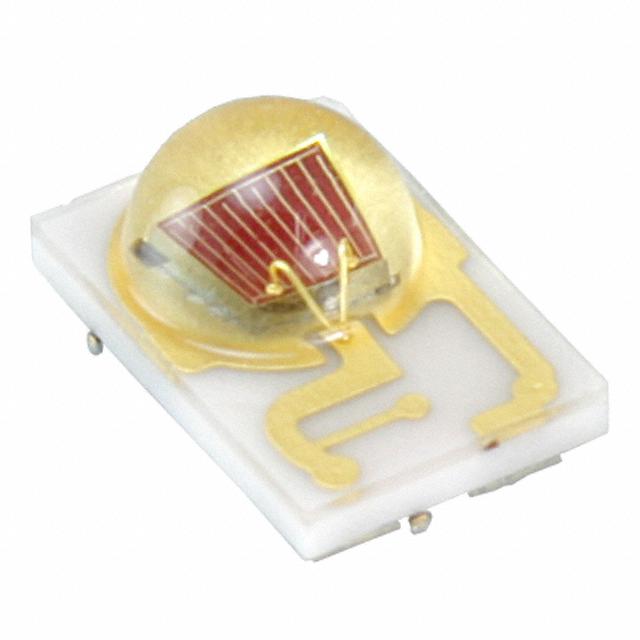

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LXM3-PD01 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy LXM3-PD01 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LXM3-PD01 |
|---|---|
| Manufacturer | LUMILEDS |
| Description | LED LUXEON REBEL DEEP RED SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $1.149 | $0.958 | $0.805 | |||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.69 | $0.613 | $0.599 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | LXM3-PD01 | Manufacturer | LUMILEDS |
|---|---|---|---|
| Description | LED LUXEON REBEL DEEP RED SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 53183 pcs | Data sheet | LUXEON Rebel, Rebel ES BriefLUXEON Rebel, Rebel ES Datasheet |
| Category | Optoelectronics | Wavelength | 655nm (Typ) |
| Voltage - Forward (Vf) (Typ) | 2.1V | Viewing Angle | 125° |
| Thermal Resistance of Package | 8°C/W | Temperature - Test | 25°C |
| Supplier Device Package | SMD | Size / Dimension | 0.177" L x 0.120" W (4.49mm x 3.05mm) |
| Series | LUXEON Rebel Color | Packaging | Original-Reel® |
| Package / Case | 1812 (4532 Metric) | Other Names | 1416-1701-6 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks | Lumens/Watt @ Current - Test | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.083" (2.10mm) |
| Flux @ Current/Temperature - Test | 305mW (260mW ~ 350mW) | Detailed Description | LED Lighting Color LUXEON Rebel Color Red 655nm (Typ) 1812 (4532 Metric) |
| Current - Test | 350mA | Current - Max | 700mA |
| Color | Red |
