EDN.0M.305.XLM

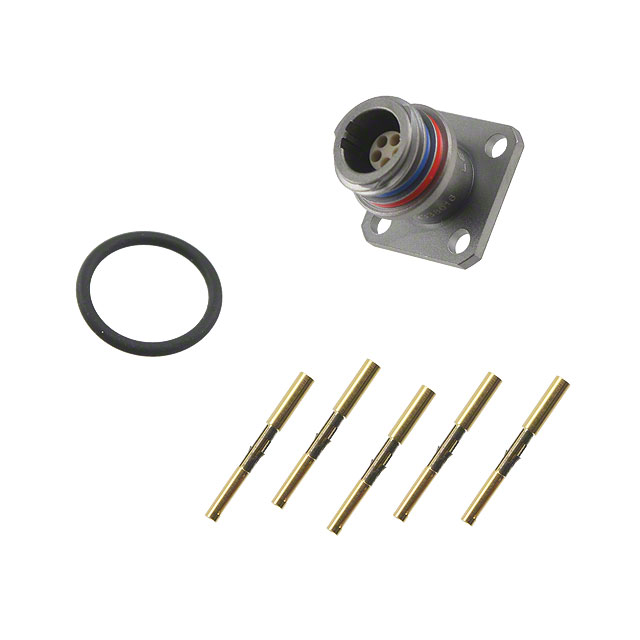

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EDN.0M.305.XLM with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EDN.0M.305.XLM with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EDN.0M.305.XLM |
|---|---|
| Manufacturer | LEMO |
| Description | CONN RCPT FMALE 5POS GOLD CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $22.525 | $21.199 | $20.537 | $19.212 | $18.152 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | EDN.0M.305.XLM | Manufacturer | LEMO |
|---|---|---|---|
| Description | CONN RCPT FMALE 5POS GOLD CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2014 pcs | Data sheet | M Series CatalogEDN.0M.305.XLM |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Crimp | Shielding | Shielded |
| Shell Size, MIL | - | Shell Size - Insert | 305 |
| Shell Material | Aluminum Alloy | Shell Finish | Nickel |
| Series | 0M | Packaging | Bulk |
| Other Names | 1124-1179 EDN0M305XLM |
Orientation | N (Normal) |
| Operating Temperature | -55°C ~ 200°C | Number of Positions | 5 |
| Mounting Type | Panel Mount | Mounting Feature | Flange |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polyetheretherketone (PEEK) | Ingress Protection | IP68 - Dust Tight, Waterproof |
| Features | - | Fastening Type | Threaded |
| Detailed Description | 5 Position Circular Connector Receptacle, Female Sockets Crimp Gold | Current Rating | 6.5A |
| Contact Material | Bronze | Contact Finish Thickness - Mating | 59.0µin (1.50µm) |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Female Sockets |
| Color | Gray | Cable Opening | 0.186" (4.72mm) |
| Backshell Material, Plating | - | Applications | Aerospace, Automotive, Aviation, Military |
