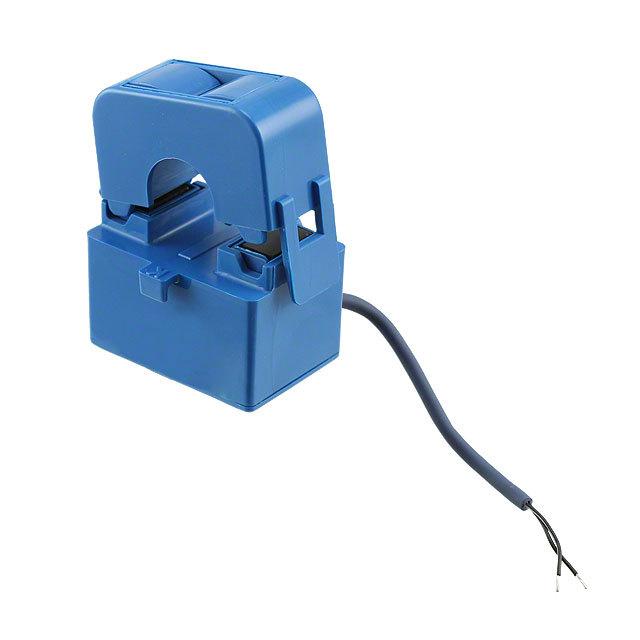

TT 100-SD
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TT 100-SD with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TT 100-SD with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TT 100-SD |
|---|---|
| Manufacturer | LEM USA, Inc. |
| Description | CURR SENSE XFMR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $12.073 | $10.651 | $10.296 | $9.231 | $8.876 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | TT 100-SD | Manufacturer | LEM USA, Inc. |
|---|---|---|---|
| Description | CURR SENSE XFMR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3618 pcs | Data sheet | TT 100-SD |
| Category | Transformers | Weight | 0.23 lb (104.33g) |
| Type | Non-Invasive (Split Core) | Turns Ratio - Primary:Secondary | - |
| Termination Style | PC Pin | Size / Dimension | 1.574" L x 1.122" W (40.50mm x 28.50mm) |
| Series | TT | Ratings | - |
| Packaging | Bulk | Other Names | 398-1079 TT100SD U2.00.34.000.0 |
| Mounting Type | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 2.047" (52.00mm) | Frequency Range | 50/60Hz |
| Energy Time (E.T.) | - | Detailed Description | Current Sense Transformer 50/60Hz |
| DC Resistance (DCR) | - | Current Ratio | - |
