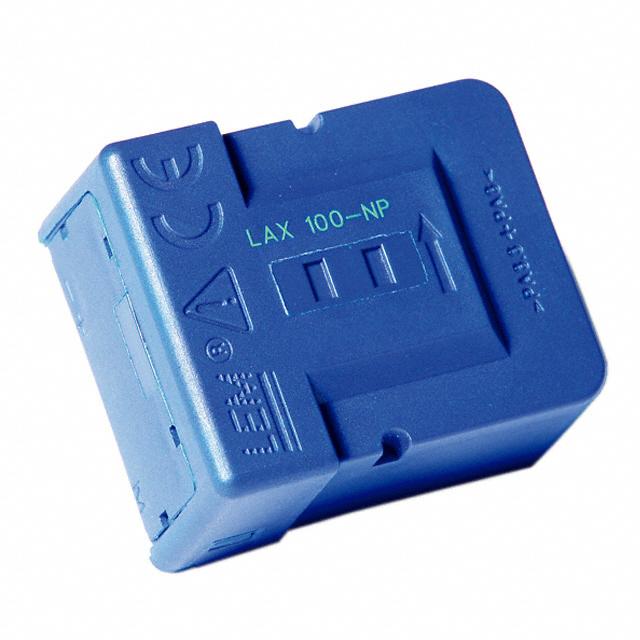

LAX 100-NP
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LAX 100-NP with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy LAX 100-NP with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LAX 100-NP |
|---|---|
| Manufacturer | LEM USA, Inc. |
| Description | SENSOR CURRENT HALL SELECTABLE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 12 pcs | 36 pcs | |
|---|---|---|---|---|---|
| $7.876 | $7.518 | $6.802 | $6.265 | ||
| 60 pcs | 108 pcs | 504 pcs | |||
| $5.549 | $5.37 | $5.012 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | LAX 100-NP | Manufacturer | LEM USA, Inc. |
|---|---|---|---|
| Description | SENSOR CURRENT HALL SELECTABLE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7244 pcs | Data sheet | LAX 100-NP |
| Category | Sensors, Transducers | Voltage - Supply | ±11.4 V ~ 15.75 V |
| Series | LAX | Sensor Type | Hall Effect, Closed Loop |
| Sensitivity | 0.5mA/A | Response Time | 0.2µs |
| Polarization | Bidirectional | Packaging | Tube |
| Package / Case | - | Output | Ratiometric, Current |
| Other Names | 398-1024-5 90.B7.34.000.0 LAX100NP |
Operating Temperature | -40°C ~ 85°C |
| Number of Channels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 8 Weeks |
| Linearity | ±0.1% | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Frequency | DC ~ 300kHz | For Measuring | AC/DC |
| Detailed Description | Current Sensor 16.7A, 25A, 33.3A, 50A, 100A (Selectable) 1 Channel Hall Effect, Closed Loop Bidirectional | Current - Supply (Max) | 62mA |
| Current - Sensing | 16.7A, 25A, 33.3A, 50A, 100A (Selectable) | Accuracy | ±0.91% |
