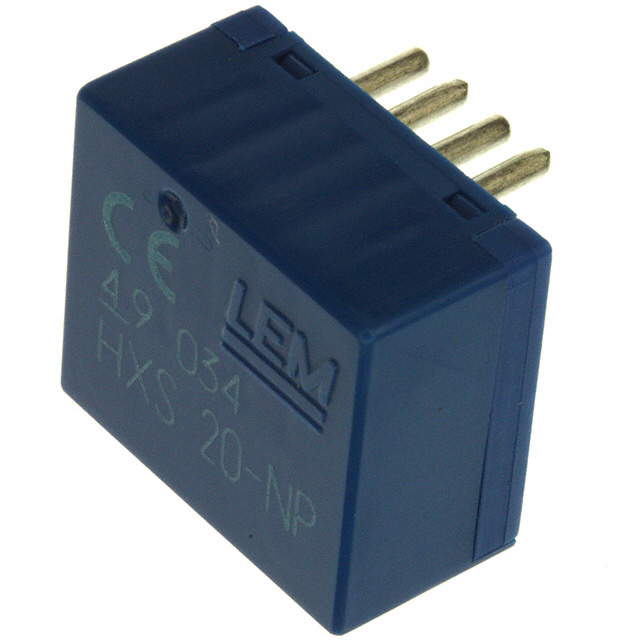

HXS 20-NP
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HXS 20-NP with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HXS 20-NP with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HXS 20-NP |
|---|---|
| Manufacturer | LEM USA, Inc. |
| Description | SENSOR CURRENT HALL 5A, 10A, 20A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 20 pcs | 40 pcs | |
|---|---|---|---|---|---|
| $5.832 | $5.711 | $4.759 | $4.402 | ||
| 60 pcs | 100 pcs | 500 pcs | 1000 pcs | ||
| $4.283 | $3.688 | $3.45 | $3.272 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HXS 20-NP | Manufacturer | LEM USA, Inc. |
|---|---|---|---|
| Description | SENSOR CURRENT HALL 5A, 10A, 20A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11585 pcs | Data sheet | HXS 20-NP |
| Category | Sensors, Transducers | Voltage - Supply | 5V |
| Series | HXS | Sensor Type | Hall Effect, Open Loop |
| Sensitivity | - | Response Time | 5µs |
| Polarization | Bidirectional | Packaging | Tube |
| Package / Case | Module | Output | Ratiometric, Voltage |
| Other Names | 398-1025-5 64.90.17.000.0 HXS20NP |
Operating Temperature | -40°C ~ 105°C |
| Number of Channels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 6 Weeks |
| Linearity | ±0.5% | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Frequency | DC ~ 50kHz | For Measuring | AC/DC |
| Detailed Description | Current Sensor 5A, 10A, 20A (Selectable) 1 Channel Hall Effect, Open Loop Bidirectional Module | Current - Supply (Max) | 19mA |
| Current - Sensing | 5A, 10A, 20A (Selectable) | Accuracy | ±1% |
