Home > Products > Sensors, Transducers > Current Transducers > HC2F100-SN

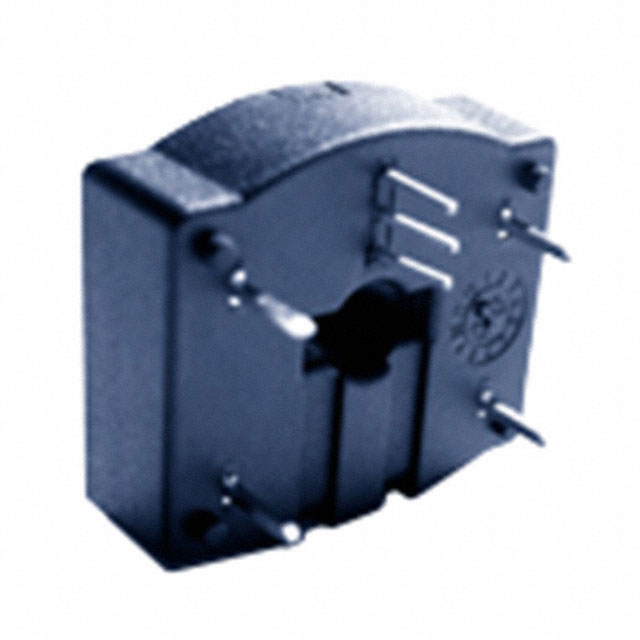

HC2F100-SN

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HC2F100-SN with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	HC2F100-SN
Manufacturer	LEM USA, Inc.
Description	SENSOR CURRENT HALL 100A AC/DC
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5175 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	HC2F100-SN	Manufacturer	LEM USA, Inc.
Description	SENSOR CURRENT HALL 100A AC/DC	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5175 pcs	Data sheet	HC2F100-SN Clips
Category	Sensors, Transducers	Voltage - Supply	4.75 V ~ 5.25 V
Series	HC2F	Sensor Type	Hall Effect, Open Loop
Sensitivity	20mV/A	Response Time	15µs
Polarization	Bidirectional	Packaging	Bulk
Package / Case	Module	Output	Ratiometric, Voltage
Other Names	HC2F100SN Q3206052	Operating Temperature	-40°C ~ 125°C
Number of Channels	1	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Linearity	±0.2%
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Frequency	20kHz
For Measuring	AC/DC	Detailed Description	Current Sensor 100A 1 Channel Hall Effect, Open Loop Bidirectional Module
Current - Supply (Max)	20mA	Current - Sensing	100A
Accuracy	-
