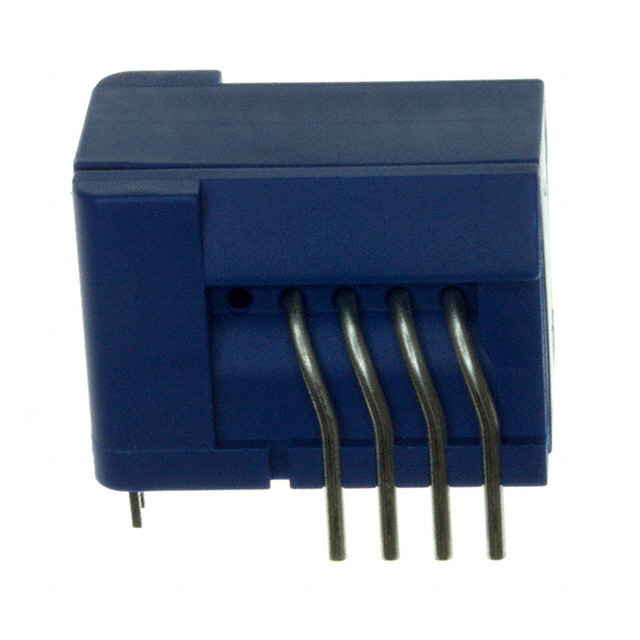

CKSR 15-NP
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CKSR 15-NP with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CKSR 15-NP with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CKSR 15-NP |
|---|---|
| Manufacturer | LEM USA, Inc. |
| Description | SENSOR CURRENT FLUX 15A AC/DC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | |
|---|---|---|---|---|---|
| $6.539 | $6.404 | $5.337 | $4.937 | ||
| 50 pcs | 100 pcs | 500 pcs | |||
| $4.803 | $4.136 | $3.869 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | CKSR 15-NP | Manufacturer | LEM USA, Inc. |
|---|---|---|---|
| Description | SENSOR CURRENT FLUX 15A AC/DC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8262 pcs | Data sheet | CAS,CASR,CKSR Series |
| Category | Sensors, Transducers | Voltage - Supply | 4.75 V ~ 5.25 V |
| Series | CKSR | Sensor Type | Flux Gate, Closed Loop |
| Sensitivity | 41.67mV/A | Response Time | 0.3µs |
| Polarization | Bidirectional | Packaging | Tube |
| Package / Case | Module | Output | Ratiometric, Voltage |
| Other Names | 398-1096-5 90.E7.15.000.7 CKSR15NP |
Operating Temperature | -40°C ~ 105°C |
| Number of Channels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 6 Weeks |
| Linearity | ±1% | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Frequency | 300kHz | For Measuring | AC/DC |
| Detailed Description | Current Sensor 15A 1 Channel Flux Gate, Closed Loop Bidirectional Module | Current - Supply (Max) | 20mA |
| Current - Sensing | 15A | Accuracy | ±0.8% |
